Table en aluminium de vide de nid d'abeilles pour l'imprimante UV de lit plat

Product Description:

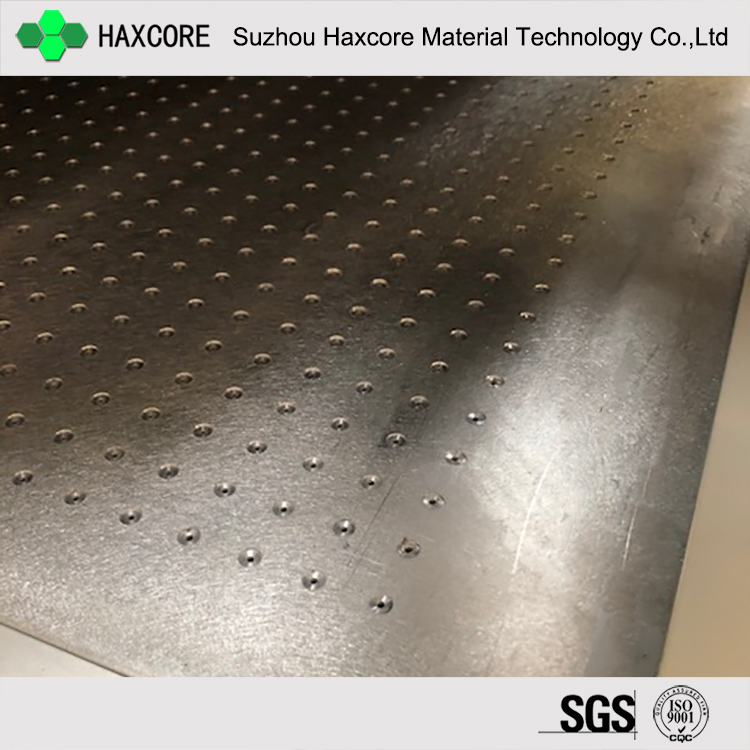

Haxcore specilizes in vacuum table production more than 10 years. Due to the high demand and optimized working process, we always can provide you a competitive price. It uses our another product, namely, aluminum honeycomb core inside, to make sure the planarity and reduce the weight. It is mainly applied in the digital printing industry, UV printing industry and digital cutting industry for securely holding the substrate in place while performing printing or cutting.

We can help you design and manufacture the customized vacuum table according your specific requirements. No need to buy the new machine since we can help you make the cost reduction. Just tell us your existing machine frame and we will make the adjustments accordingly during the table production.

We can make the vacuum table with maximum length: 3800mm* maximum width 1800mm. And try to order the vacuum tables in Even Number if possible to avoid the table surface scratch.

Main Features:

1. Lightweight: We use the high strength super light aluminum honeycomb core inside; Average weight ranges from 25 to 35 kg per sqm;

2. Super Flatness and Rigidity: Planarity will be lower than 0.3mm. But it often can reach 0.1 mm in most cases. Deflection value will be lower than 0.1mm once gave 30kg pressure;

3. Customized Service: You can choose the dimension, suction hole diameter, hole distance and suction inlets quantity;

4. Surfaces treatment: PVDF/ Anodizing.

Related Products:

Optional add-on felt is available.

Company Information:

Haxcore Material Technology is a pioneer and leader in aluminum honeycomb core manufacturing and vacuum table production, catering to the demands of the screen printing, flatbed digital plotter/cutter, UV flatbed printer and other industries, etc.

Haxcore started the domestic business from 2008 in China. With a 10-acre facility housing, Haxcore has two state-of-the-art new lines which can help us to fulfill the customers demand on timely basis. We strictly follow the quality procedures and all the products are in line with international quality standards.

Additionally, Haxcore has an experienced and ambitious management team. Our management are fully dedicated towards their work so that we can successfully cope up with the dynamic market trends. We strive for providing the high performance-to-price ratio products in order to establish the long-term business relationship with our customers.

FAQ:

1. Q: What are your size limitations? What is the maximum length, width, and thickness you can provide?
A: We can provide the vacuum table with the maximum dimension 3800*1800 mm. And basically there are 2 standard thickness products can be made, namely, 42.5 & 53.5 mm respectively.

2. Q: Are you a direct manufacturer?
A: Yes, we are manufacturer, welcome to our factory to have a field visit.

3. Q: What is MOQ of your product?
A: We accept the small order.

4. Q: What about the lead time?
A: Normally it will take 25-30 days.

5. Q: What is your payment term?
A: 50% T/T in advance, balance before shipment.
