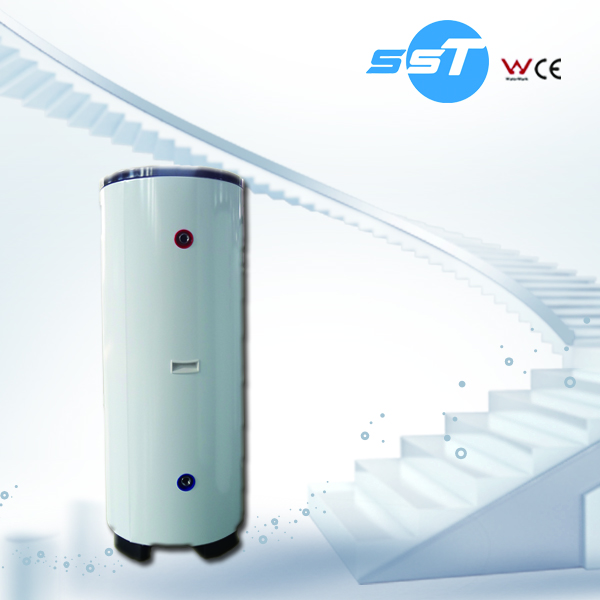

Tank in tank electric boiler
Quantité : 2pcs Prix : USD599.00
Tank in tank electric boiler
| Picture show of Solar Water Heater System |
SST www.chinawatertank.com |
| Details of Solar Water Heater System |
SST www.chinawatertank.com |
| Solar Collector | |||
| PSHC-2C | PSHC-2C B | ||
| Dimensions (L*W*D) | mm | 2015*1015*105 | 2015*1015*105 |
| Shipping dimensionGross area | m2 | 2070*1075*140 | 2070*1075*140 |
| Gross area | m2 | 2.05 | 2.05 |
| Absorber area | m2 | 1.72 | 1.72 |
| Absorption | % | 95±2 | 95±2 |
| Emission | % | 5±2 | 5±2 |
| Max.operating pressure | bar | 6 | 6 |
| Content | L | 0.95 | 0.95 |
| Flow / return distance | mm | 1800 | 850 |
| Connections | G | 3/4'' | 3/4'' |
| Angle of inclination | . | 0-90 | 0-90 |
| Absorber | eta plus-Cu | ||
| Absorber coating | High selective vacuum coating | ||
| Heat transfer medium | Polypropylene glycol / water mixture | ||
| Brief of Solar Water Heater System |
SST www.chinawatertank.com |
| Technical data of Solar Water Heater System |
SST www.chinawatertank.com |
|
PAWT tank
|
||
|
Nominal capacity |
L | 50 / 80 / 100 / 120 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 |
|
Inner tank diameter |
mm | Φ370 / Φ370 / Φ370 / Φ370 / Φ370 / Φ470 / Φ470 / Φ500 / Φ600 / Φ600 / Φ650 / Φ700 / Φ700 |
|
Inner tank material |
SUS304 , SUS316L, duplex stainless steel (<500L)</span> | |
|
Out shell material |
Galvanized steel with painting, stainless steel | |
|
Out shell color |
White, silver-grey, blue, red | |
|
Max. working pressure |
bar | 6 |
|
Max. testing pressure |
bar | 10 |
| Max. running temperature | oC | 90 |
| E-heater | Flange welded type, screw thread type (optional) | |
| Mg. anode | Optional | |
| Material of Solar Water Heater System |
SST www.chinawatertank.com |
1.Material of out shell: Galvanized-steel with painting, stainless steel, PU soft coat, aluminum-alloy.
2.Material of inner tank: Duplex stainless steel 2304/2205, SUS304, SUS316L are available.
3.Insulation: polyurethane resin foaming / PU soft coat.
4.Material of inner coils: Copper / stainless steel / wave stainless steel.
| Unique technology/advantage |
SST www.chinawatertank.com |
| Feature & charecter of Solar Collector |
