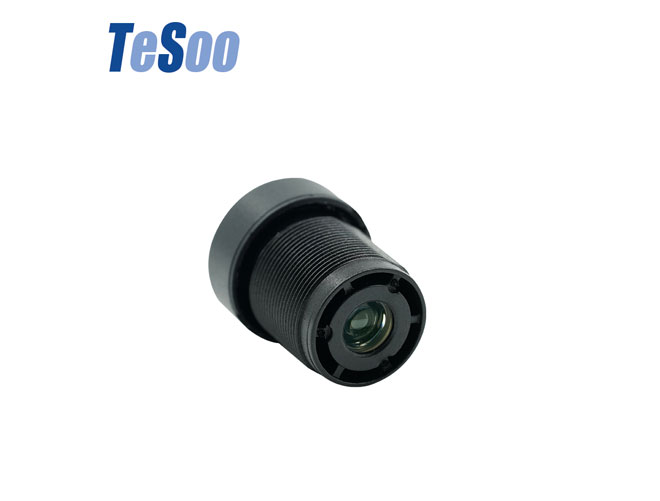

Tesoo CCTV Wide Angle Lens
Tesoo provides premium quality cctv camera wide angle lens with excellent reliability and performance, which can be used under extreme environment. Part of the wide angle lenses are warmly welcomed by vehicle applications, which can work stablely under -40℃~+105℃. Tesoo has various types of wide angle lenses, TTL: 10mm~24mm. EFL: 1.6mm~3.6mm. F.NO: F1.2~F2.8. Get CCTV camera wide angle lens price from Tesoo, the professional cctv lens suppliers now!
Specifications of Tesoo CCTV Wide Angle Lens
|
PART No. |
TS-2722L-A01 |
|
TTL |
21.6mm |
|
EFL |
3.6mm |
|
F/NO |
F2.2 |
|
MBFL |
4.65mm |
|
SENSOR SIZE |
1/2.7" |
|
FOV |
|
|
(D) |
117° |
|
(H) |
96° |
|
(V) |
51° |
|
MAX IMAGE CIRCLE |
φ7.2 mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
1G3P |
|
DIAMENSIONS |
φ14*16.95 |
|
Operating temp. |
-10~ +70℃ |
|
Storage temp. |
15~ +75℃ |
|
PART No. |
TS-2723N-A00 |
|
TTL |
22.5mm |
|
EFL |
2.8mm |
|
F/NO |
F2.0 |
|
MBFL |
4.34mm |
|
SENSOR SIZE |
1/2.7" |
|
FOV |
|
|
(D) |
138° |
|
(H) |
114° |
|
(V) |
60° |
|
MAX IMAGE CIRCLE |
φ6.9 mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
4G |
|
DIAMENSIONS |
φ14*18.16 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃ |
|
PART No. |
TS-2721O-A00 |
|
TTL |
20.85mm |
|
EFL |
2.9mm |
|
F/NO |
F2.2 |
|
MBFL |
5.3mm |
|
SENSOR SIZE |
1/2.7" |
|
FOV |
|
|
(D) |
148° |
|
(H) |
122° |
|
(V) |
64° |
|
MAX IMAGE CIRCLE |
φ6.9 mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
2G3P |
|
DIAMENSIONS |
φ14*16.1 |
|
Operating temp. |
-20 ~ +75℃ |
|
Storage temp. |
-25 ~ +80℃ |
|
PART No. |
TS-2715Q-A00 |
|
TTL |
14.95mm |
|
EFL |
2.52mm |
|
F/NO |
F2.4 |
|
MBFL |
3.55mm |
|
SENSOR SIZE |
1/2.7" |
|
FOV |
|
|
(D) |
170° |
|
(H) |
137° |
|
(V) |
74° |
|
MAX IMAGE CIRCLE |
φ7.0 mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
2G3P |
|
DIAMENSIONS |
φ14*12.43 |
|
Operating temp. |
-20 ~ +75℃ |
|
Storage temp. |
-25 ~ +80℃. |
