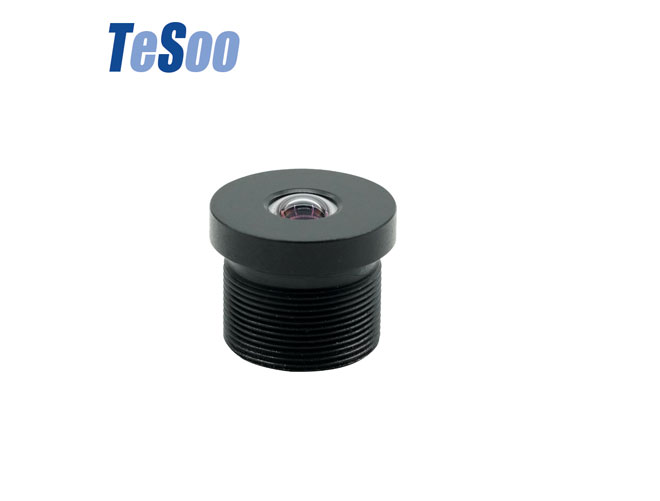

Tesoo Large Format Lenses
Tesoo large format lenses play a vital role in atmosphere data collection and weather condition prediction. The sensor size of large format automotive camera lens is 1/1.7'' to 1/2.3''. TTL: 15.02-23mm. EFL: 2.95-10.5mm. F.NO: 2.0/2.2/2.4/2.8. MBFL: 2.79-5.93mm. Large format lenses for sale, contact us now!
Specifications of Tesoo Large Format Lenses
|
PART No. |
TS-1817I-A00 |
|
TTL |
16.73mm |
|
EFL |
5.60mm |
|
F/NO |
F2.4 |
|
MBFL |
5.06mm |
|
SENSOR SIZE |
1/1.7''(16: 9) |
|
FOV |
|
|
(D) |
90° |
|
(H) |
79° |
|
(V) |
45° |
|
MAX IMAGE CIRCLE |
φ9.7mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ14*11.67 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃ |
|
PART No. |
TS-2015E-A06 |
|
TTL |
15.02mm |
|
EFL |
10.5mm |
|
F/NO |
F2.8 |
|
MBFL |
2.79mm |
|
SENSOR SIZE |
1/1.8''(16: 9) |
|
FOV |
|
|
(D) |
44° |
|
(H) |
38° |
|
(V) |
27° |
|
MAX IMAGE CIRCLE |
φ9.60mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ14*12.47 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃ |
|
PART No. |
TS-2022I-A00 |
|
TTL |
22.11mm |
|
EFL |
5.60mm |
|
F/NO |
F2.2 |
|
MBFL |
5.06mm |
|
SENSOR SIZE |
1/2''(16: 9) |
|
FOV |
|
|
(D) |
92° |
|
(H) |
80° |
|
(V) |
46° |
|
MAX IMAGE CIRCLE |
φ8.70mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ14*17.05 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃ |
|
PART No. |
TS-1823N-A00 |
|
TTL |
23mm |
|
EFL |
4.0mm |
|
F/NO |
F2.8 |
|
MBFL |
5.93mm |
|
SENSOR SIZE |
1/1.8'' |
|
FOV |
|
|
(D) |
135° |
|
(H) |
110° |
|
(V) |
73° |
|
MAX IMAGE CIRCLE |
φ10.3mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ14*17.07 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃. |
