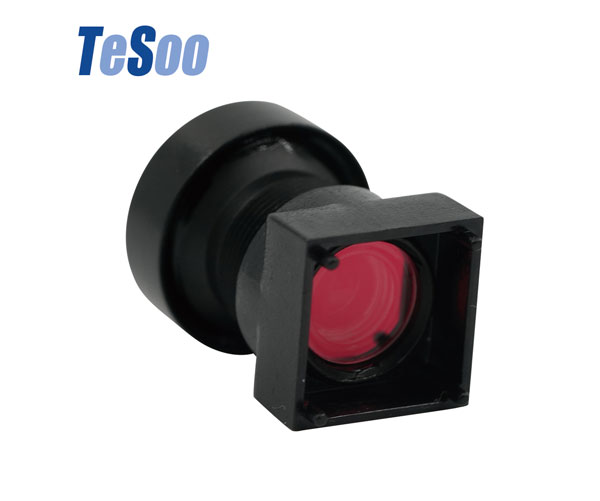

Tesoo M6 Mini Lens Mount

PART No.

TS-2314T-A10

TTL

14mm

EFL

1.80mm

F/NO

2

MBFL

2.33mm

SENSOR SIZE

1/4''

1/2.8''

FOV

FOV

(D)

177°

200°

(H)

136°

200°

(V)

79°

105°

TV-DISTORTION

＜-45%

＜-52%

MAX IMAGE CIRCLE

φ4.7mm

Mount

M7*0.35

CONSTRUCTION

All Glass +Metal

DIAMENSIONS

φ10*11.67

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2516N-A10

TTL

15.95mm

EFL

3.65mm

F/NO

2

MBFL

2.80mm

SENSOR SIZE

1/3.2''

1/2.7''

FOV

FOV

(D)

105°

120°

(H)

83°

97°

(V)

47°

52°

TV-DISTORTION

＜-15%

＜-20%

MAX IMAGE CIRCLE

φ7.8mm

Mount

M7*0.35

CONSTRUCTION

All Glass +Metal

DIAMENSIONS

φ10*13.15

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2716G-A08

TTL

15.69mm

EFL

5.60mm

F/NO

2.6

MBFL

6.24mm

SENSOR SIZE

1/3''

1/2.7''

FOV

FOV

(D)

64°

71°

(H)

50°

57°

(V)

38°

42°

TV-DISTORTION

＜-5%

＜-6.5%

MAX IMAGE CIRCLE

φ6.80mm

Mount

M7*0.35

CONSTRUCTION

All Glass+Metal

DIAMENSIONS

φ8.1*9.45

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-4006E-AM6

TTL

5.99mm

EFL

4.63mm

F/NO

5.7

MBFL

1.99mm

SENSOR SIZE

1/4''

FOV

(D)

50°

(H)

44°

(V)

26°

TV-DISTORTION

＜-0.08%

MAX IMAGE CIRCLE

φ4.8mm

Mount

M5.8*0.235

CONSTRUCTION

4E +Plastic

DIAMENSIONS

φ3*4

Operating temp.

-20 ~ +75℃

Storage temp.

-25 ~ +80℃

PART No.

TS-9002M-AM3

TTL

2.7mm

EFL

1.03mm

F/NO

4

MBFL

0.55mm

SENSOR SIZE

1/9''

FOV

(D)

129°

(H)

99°

(V)

50°

TV-DISTORTION

＜-25%

MAX IMAGE CIRCLE

φ2.1mm

Mount

M2.6*0.25

CONSTRUCTION

4E+Plastic

DIAMENSIONS

φ2*2.1

Operating temp.

-20 ~ +75℃

Storage temp.

-25 ~ +80℃.
