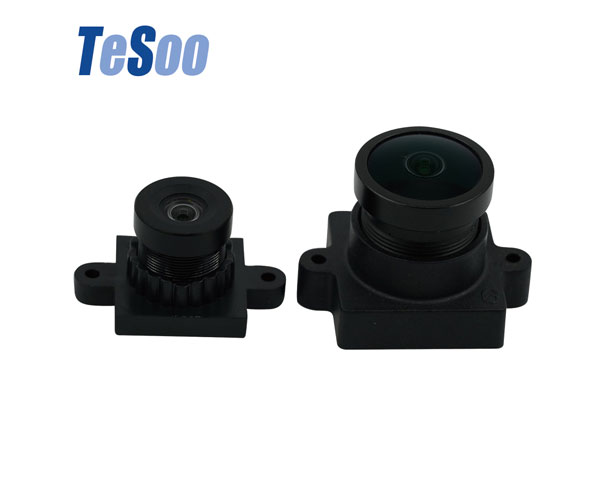

Tesoo Wide Angle No Distortion Lens

PART No.

TS-2710L-A10

TTL

9.95mm

EFL

2.60mm

F/NO

2.4

MBFL

1.81mm

SENSOR SIZE

1/3''

1/2.7''

FOV

FOV

(D)

109°

122°

(H)

89°

102°

(V)

64°

62°

TV-DISTORTION

＜-4%

＜-10.5%

MAX IMAGE CIRCLE

φ6.85mm

Mount

M9*0.35

CONSTRUCTION

1G5P+Plastic

DIAMENSIONS

φ10*8.14

Operating temp.

-20 ~ +70℃

Storage temp.

-40 ~ +80℃

PART No.

TS-2322H-A00

TTL

22mm

EFL

4.28mm

F/NO

2.2

MBFL

2.55mm

SENSOR SIZE

1/2.5''

1/2.3''

FOV

FOV

(D)

78°

82°

(H)

66°

69°

(V)

36°

55°

TV-DISTORTION

＜-1%

＜-1.5%

MAX IMAGE CIRCLE

φ8.30mm

Mount

M12*0.5

CONSTRUCTION

4G2P+Metal

DIAMENSIONS

φ14*19.45

Operating temp.

-20 ~ +70℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2709G-A08

TTL

8.47mm

EFL

4.60mm

F/NO

2.6

MBFL

1.48mm

SENSOR SIZE

1/3''

1/2.7''

FOV

FOV

(D)

68°

72°

(H)

59°

66°

(V)

38°

39°

TV-DISTORTION

＜-1.5%

＜-2%

MAX IMAGE CIRCLE

φ6.85mm

Mount

M9*0.35

CONSTRUCTION

3G1MG+Metal

DIAMENSIONS

φ9*6.99

Operating temp.

-30 ~ +80℃

Storage temp.

-40 ~ +85℃

PART No.

TS-2508H-A09

TTL

7.49mm

EFL

4.80mm

F/NO

2.6

MBFL

1.74mm

SENSOR SIZE

1/3''

1/2.7''

FOV

FOV

(D)

72°

77°

(H)

62°

67°

(V)

36°

39°

TV-DISTORTION

＜-1%

＜-1%

MAX IMAGE CIRCLE

φ8.2mm

Mount

M9*0.35

CONSTRUCTION

2G2P +Metal

DIAMENSIONS

φ9*5.75

Operating temp.

-20 ~ +75℃

Storage temp.

-25 ~ +80℃

PART No.

TS-2015E-A00

TTL

15.02mm

EFL

10.50mm

F/NO

4.0

MBFL

5.06mm

SENSOR SIZE

1/2.5''

1/2''

FOV

FOV

(D)

38°

46°

(H)

33°

40°

(V)

19°

28°

TV-DISTORTION

＜-1%

＜-1.4%

MAX IMAGE CIRCLE

φ9.60mm

Mount

M12*0.5

CONSTRUCTION

All Glass +Metal

DIAMENSIONS

φ14*17.05

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2716C-A00

TTL

16mm

EFL

16mm

F/NO

4.8

MBFL

2.89mm

SENSOR SIZE

1/3''

1/2.5''

FOV

FOV

(D)

22°

27°

(H)

20°

23°

(V)

11°

13°

TV-DISTORTION

＜-0.1%

＜-0.5%

MAX IMAGE CIRCLE

φ7.60mm

Mount

M12*0.5

CONSTRUCTION

All glass+Metal

DIAMENSIONS

φ14*13.11

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2722L-B00

TTL

22.3mm

EFL

1.65mm

F/NO

2.0

MBFL

5.20mm

SENSOR SIZE

1/2.8''

1/2.7''

FOV

FOV

(D)

118°

120°

(H)

110°

115°

(V)

84°

85°

TV-DISTORTION

＜-1%

＜-1.5%

MAX IMAGE CIRCLE

φ7.0mm

Mount

M12*0.5

CONSTRUCTION

6E+Plastic

DIAMENSIONS

φ14*17.1

Operating temp.

-20 ~ +70℃

Storage temp.

-40 ~ +80℃

PART No.

TS-4006E-AM6

TTL

5.99mm

EFL

4.63mm

F/NO

5.7

MBFL

1.99mm

SENSOR SIZE

1/4''

FOV

(D)

50°

(H)

44°

(V)

26°

TV-DISTORTION

＜-0.08%

MAX IMAGE CIRCLE

φ4.8mm

Mount

M5.8*0.235

CONSTRUCTION

4E +Plastic

DIAMENSIONS

φ3*4

Operating temp.

-20 ~ +75℃

Storage temp.

-25 ~ +80℃
