Testeur d'impact balle chute

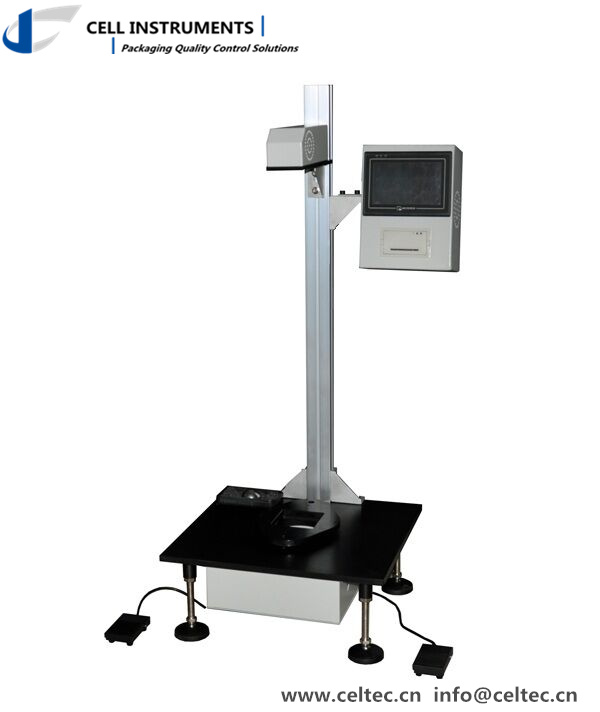

Falling ball impact tester measures the resistance performance of plates, sheets, and composites, films foils, paper etc. with less than 2mm thickness. By impact test, the material ability to resist external destruction can be indicated.

Technical Features

1. PLC control and touch screen operation

2. Impact height adjustable, different balls available

3. Test results multi-units display

4. Electromagnetic suspension and automatic release

5. Sample pneumatic clamping

6. Manual and foot switch

7. Built-in observation light for sample status easy judgment

8. Micro-printer for data export

9. Professional software(optional)

Technical Data

Impact Height 300mm-600mm (customization available)

Accuracy 0.1g (0.1J)

Steel Ball Diameter 23mm, 25mm, 28.6mm, 38.1mm, 50.8mm

Specimen Clamp Pneumatic Clamp

Gas Supply 0.6 MPa

Gas Port Size Φ8 mm PU Tubing

Specimen Size > 150 mm x 150 mm

Power Supply AC 220V 50Hz

Dimension 480 mm (L) × 470 mm (W) × 1170 mm (H)

Net Weight 70 kg

Standards

YBB00202005, YBB00212005, YBB00222005, YBB00232005, GB/T15267
