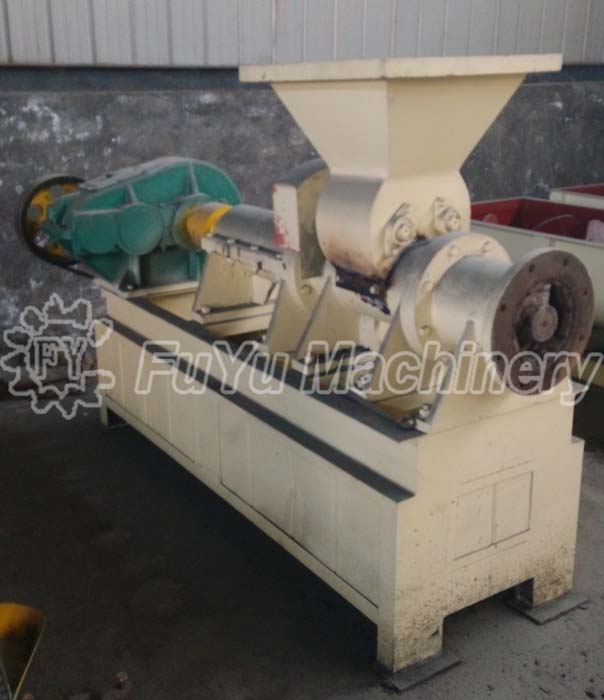

TF-300 Coal or charcoal extruder machine
Quantité : 100sets/ye Prix : Negotiatable
Introduction
It's the name of the coal-rod forming machine: Coal rod machine, coal-rod machine, hollow coal rod machine is the principle of screw extrusion, which will be modulated by the coal powder with certain strength.
Working Principle
The rotation of the impeller from the feeding port with coal, coal and coal will move forward, gradually compressed, and produce particles, close together, stirring and mixing is relatively large. At this time, the coal particles, particles and the blade and the cylinder produce strong friction and shear, and at the same time in the role of heat, the coal temperature rise, water and binder more uniform, the plastic is also greatly increased, and then through the control of mold cone shape, coal grain compression between the more closely, and then press into the flat parts of the mold, out of coal rod machine and molding.
Coal rod machine adopts Hardened reducer, small volume, and high bearing capacity. Coal rod extrusion machine inside the impeller adopts thickening blade design, impeller and cylinder body is lined with wear resistant casting material and, life than ordinary steel improve 4-5 times. The head of the coal rod machine export with replaceable wear resistant alloy steel production, the replacement is convenient. Head and cylinder in the form of hinge, maintenance can be opened; replacement within the impeller and cylinder liner is very convenient.
Technical Parameters
Model: TF-300
Capacity: 3-5t/h
Molding Specifaction: Dia. 20-80
Spindle Speed: 35-60Rev/min
Helical Balde Number: 4
Electric Machinery: 37kw, 45kw
Reducer: ZQ650-750
Bearing: 32320, 320, 319, 1207
