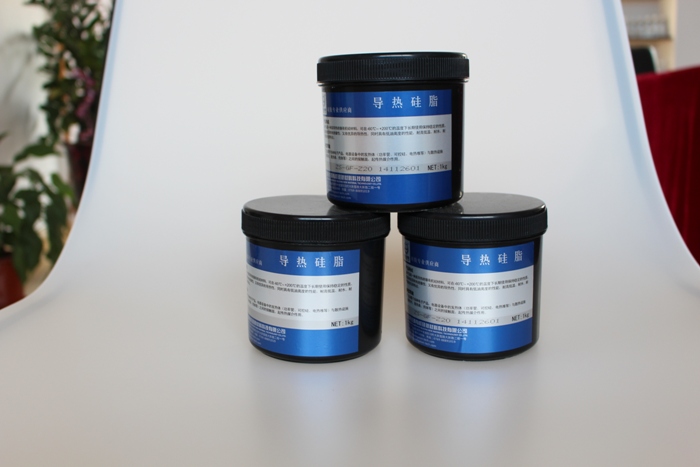

Thermal conductive silicone grease
Appearance | White Paste |
200~300(1/10mm, 25℃) | |
Specific Gravity | 3.0~3.4 |
Oil Separation | ≤1.0(%) (200℃, 8h) |
Volatile | ≤1.0(%)(200℃, 8h) |
Breakdown Voltage Strength | ≥10(kv/mm) |
Volume Resistivity | ≥3×1014(Ω·CM) |
Thermal Conductivity | 1.0-1.2(w/m.k) |
1 kg/tank, 10kg/barrel, 80g/branch, 150g/branch.
1. Features
ZS-GF-Z10 is a high thermal conductive insulation grease,The silicone grease is non-toxic, non-corrosive, odorless and quit, can keep long-term paste at the temperature of -60℃~200℃. The properties of excellent electrical insulating and thermal conductivity. Meanwhile low oil from the degree of high temperature resistance, water resistance, ozone resistance, weather resistance, good work-ability and stability. It can be widely used to contact surface between electronic products, heating element of electrical equipment(power tube, SCR, electric heating reactor, etc) and radiator (cooling fin, heat sink strip, shell). Playing an important role for moisture-proof , dust-proof, corrosion resistance, quake-proof, etc. Suitable for coating surface of the microwave communication, microwave transmission equipment, special power supply of microwave, stabilized voltage supply and various microwave devices, such silicone material provides an excellent thermal conduction for electronic components, .
2.The Typical Application
Thermal conduction and coating transistors, CPU assembly, thermistor, temperature sensors, automotive electronic components, car and refrigerator, power modules, printing head.
3.Instructions
Clean the surface of coated, the product can used to contact surface by smearing or roller coating by writing brush or silk-screen printing.
4. Note
•This product is not a dangerous goods, but avoid contacting eye.
•This product is non-toxic, has good physical inertia, no skin irritation and damage.
•Product does not contain flammable ingredients, will not cause fire and explosion, there is not special requirements for transportation.
•Users make silicone oil as dilution agent by themselves, that can lead a phenomenon of separating oil and decrease thermal conductivity. So, we suggest that consumer should choose appropriate model number to assure the quality of product.
•This product can not long-term use at high temperature of 300 ℃, can continuous use at -60℃ ~ 200 ℃.
5. Storage And Transportation
•This product is stored in a cool, dry place, 1 year shelf life .
•This product is non-dangerous goods, according to general chemical transport.
