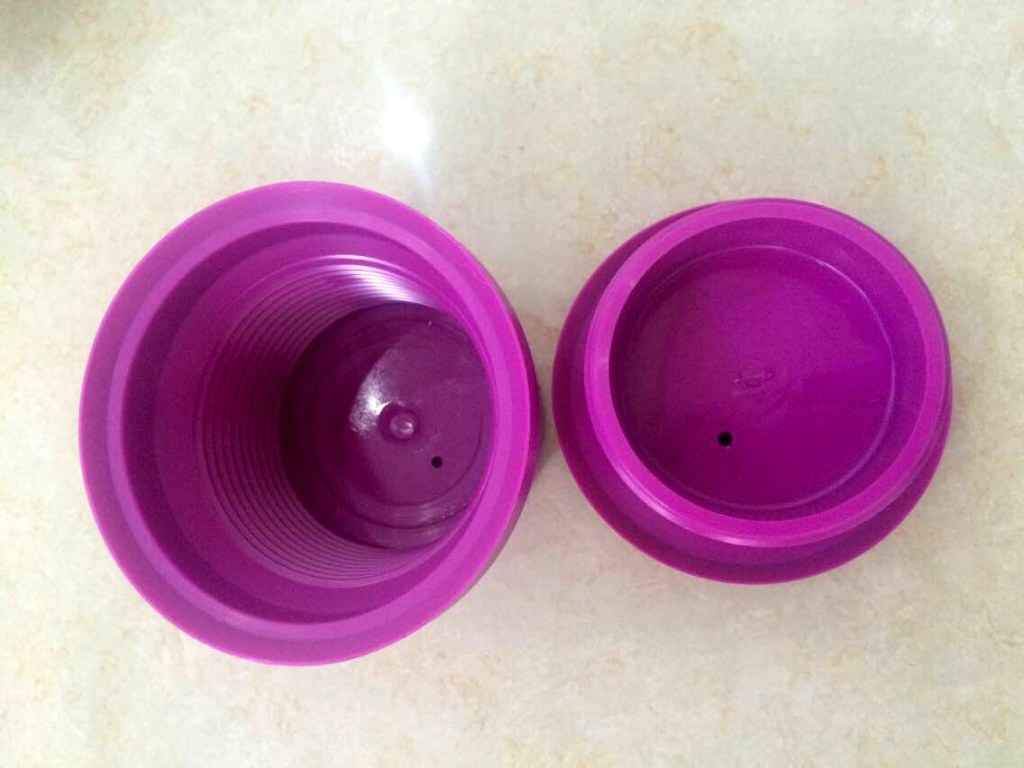

Thread protector
Détails
Chine (Rép. pop) Divers
Divers

Thread protector

Casing & Drill Pipe Protector

The Casing & Drill Pipe Protector is a nonmetal abrasion-resistant sleeve installed on a drill pipe by a position collar. The O.D of protector is larger than that of a drill pipe collar. The protector prevents the metal to metal friction between casing and drill , thus achieving the purpose of casing and drill pipe protection. The protector consists of two positioning collars and a nonmetal a brasion-resistant sleeve.

Features:

1. The rated temperature reaches 180℃.

2. The abrasion resisting capacity is 500 times higher than that of cast iron.

3. The rotary drilling torque can be reduced up to 50%.

Detail Specification:

Technical specifications and parameters for Casing & Drill Pipe Protector

Drill pipe size mm (in)

140 (5.5”)

127 (5”)

88.9 (3 1/2”)

Sleeve O.D. (mm)

196.85

184.15

139.7

Positioning Collar O.D. (mm)

177.8

165.1

127

Positioning Collar Height (mm)

127

127

127

Side-Load Rating (KN)

9.072

9.072

6.804

Localisation : Rm1623,Unit 1,No.2 Building, I-City of the Greenwich, No.11 Tangyan South Road, High-Tech District, Xi'an City, Shaanxi Province,China , 710065 xi'an,
Personne à contacter : lily jing, 0086 29 85370919
