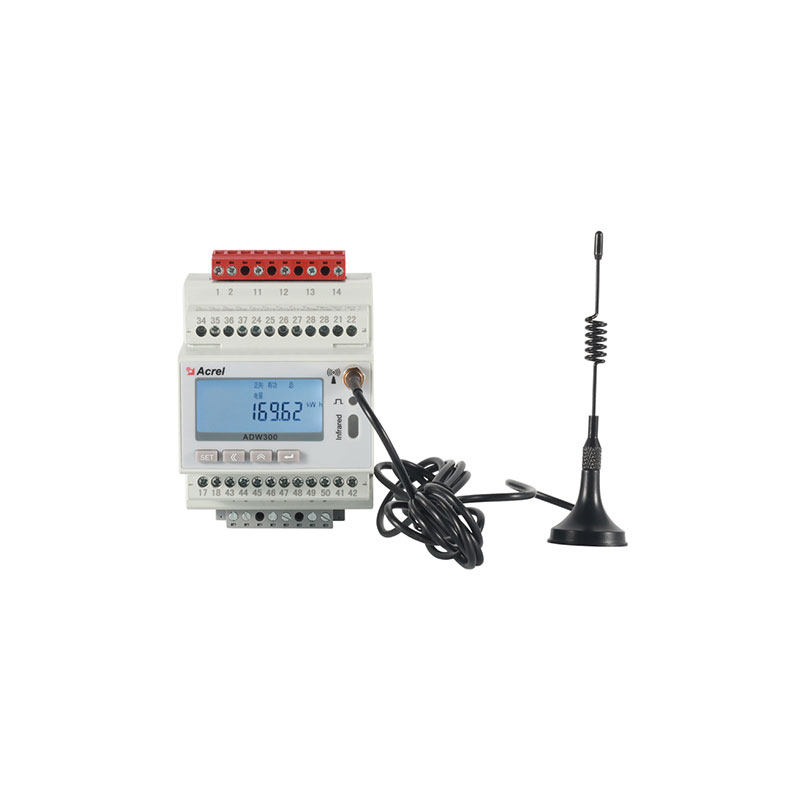

Three Phase ADW300
Acrel ADW300 wireless smart energy meter can be used for different applications. Acrel ADW300 is three phase wireless energy monitor for smart meters with RS485/LoRa/GPRS/4G/WF.
Technical Parameter ADW300
|
Input voltage |
3×220/380Vac , 3×380/660Vac |
|
Input current |
3×1(6)A |
|
Accuracy(active) |
Class 0.5s |
|
Basic function |
measure U、I、P、Q、SP、F、Hz |
|
power demand and real-time current |
|
|
2~31st voltage and current harmonic |
|
|
Optional function |
/C: RS485(Modbus-RTU) |
|
/K: 4DI/2DO |
|
|
/T: four-way temperature measurement |
|
|
/L : 1 channel residual current |
|
|
/LR: LoRa wireless communication |
|
|
/4G: 4G communication |
|
|
/WF: WIFI communication |
|
|
333mV access |
|
|
Rogowski coil (200mV) access |
|
|
Power supply |
AC/DC 85~265V |
|
Standard |
IEC 62053-22: 2003，IEC 62053-21: 2003 |
|
Dimension |
93*72*88mm |
|
Weight |
0.3kg |
Now the price of energy meter for solar system is reasonable, if you have needs, please contact us.
Established in 2003, Acrel Co Ltd (Stock Code: 300286. SZ) are a high-tech enterprise concentrating on research, production, sales, and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. "Acrel" is equipped with complete production lines from cloud platform software to sensors.
