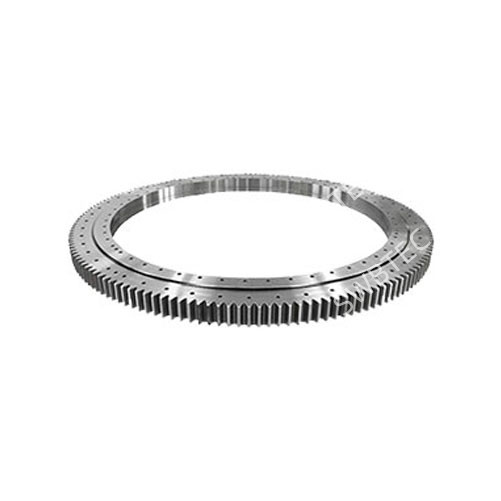

Three Row Roller Slewing Bearing

Three Row Roller Slewing Bearing has three rings with three raceways, so it can bear very high axial, radial and overturning moment at the same time, it is with the biggest load capacity and largest diameter in all type slewing bearings. so for heavy machinery which need large size playground swing bearing, this type is usually considered, such as wheel crane, port crane and other mining heavy equipment. SWBTEC can design based on customer's special requirement and produce accordingly.

Features and Benefits of Three Row Roller Slewing Bearing

The three-row roller slewing bearing is usually large in size and high in price.

It is generally used on heavy machinery that requires a larger diameter. However, once this product has quality problems, the cost of maintenance or replacement is very high.

Therefore, within the specified service life, our manufacturers must ensure that the products do not have any quality problems.

For this reason, our company control the quality from the raw materials. The material recommends customers choose 42CrMo, and it must be quenched and tempered.

During the production process, we will strictly inspect the product clearance and raceway processing to ensure that it is qualified before leaving our factory.

Three Row Roller Slewing Bearing Specifications

Three Row Roller Slewing Bearing
MODEL			DIMENSION			MOUNTING HOLE						STRUCTURE			GEAR DATA			External Gear Data		Internal Gear Data		N.W
Without Gear	External Gear	Internal Gear	D	d	H	D1	D2	n	THROUGH HOLE	SCREW HOLE		n1	H1	h	b	x	m	da	Z	da	Z	kg
									0 SEIRLA	1.2.3 SERIAL
									φ	φ	T
130.25.500	131.25.500	133.25.500	634	366	148	598	402	24	18	M16	32	4	138	32	80	0.5	5	664	130	337	68	224
	132.25.500	134.25.500															6	664.8	108	338.4	57
130.25.560	131.25.560	133.25.560	694	426	148	658	462	24	18	M16	32	4	138	32	80	0.5	5	724	142	397	80	240
	132.25.560	134.25.560															6	724.8	118	398.4	67
130.25.630	131.25.630	133.25.630	764	496	148	728	532	28	18	M16	32	4	138	32	80	0.5	6	808.8	132	458.4	77	270
	132.25.630	134.25.630															8	806.4	98	459.2	58
130.25.710	131.25.710	133.25.710	844	576	148	808	612	28	18	M16	32	4	138	32	80	0.5	6	886.8	145	536.4	90	300
	132.25.710	134.25.710															8	886.4	108	539.2	68
130.32.800	131.32.800	133.32.800	964	636	182	920	680	36	22	M20	40	4	172	40	120	0.5	8	1006.4	123	595.2	75	500
	132.32.800	134.32.800															10	1008	98	594	60
130.32.900	131.32.900	133.32.900	1064	736	182	1020	780	36	22	M20	40	4	172	40	120	0.5	8	1102.4	135	691.2	87	600
	132.32.900	134.32.900															10	1108	108	694	70
130.32.1000	131.32.1000	133.32.1000	1164	836	182	1120	880	40	22	M20	40	5	172	40	120	0.5	10	1218	119	784	79	680
	132.32.1000	134.32.1000															12	1221.6	99	784.8	66
130.32.1120	131.32.1120	133.32.1120	1284	956	182	1240	1000	40	22	M20	40	5	172	40	120	0.5	10	1338	131	904	91	820
	132.32.1120	134.32.1120															12	1341.6	109	904.8	76
130.40.1250	131.40.1250	133.40.1250	1445	1055	220	1393	1107	45	26	M24	48	5	210	50	150	0.5	12	1509.6	123	988.8	83	1200
	132.40.1250	134.40.1250															14	1509.2	105	985.6	71
130.40.1400	131.40.1400	133.40.1400	1595	1205	220	1543	<span styl
