TJH-1 Weighing Load Cell

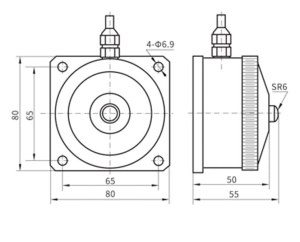

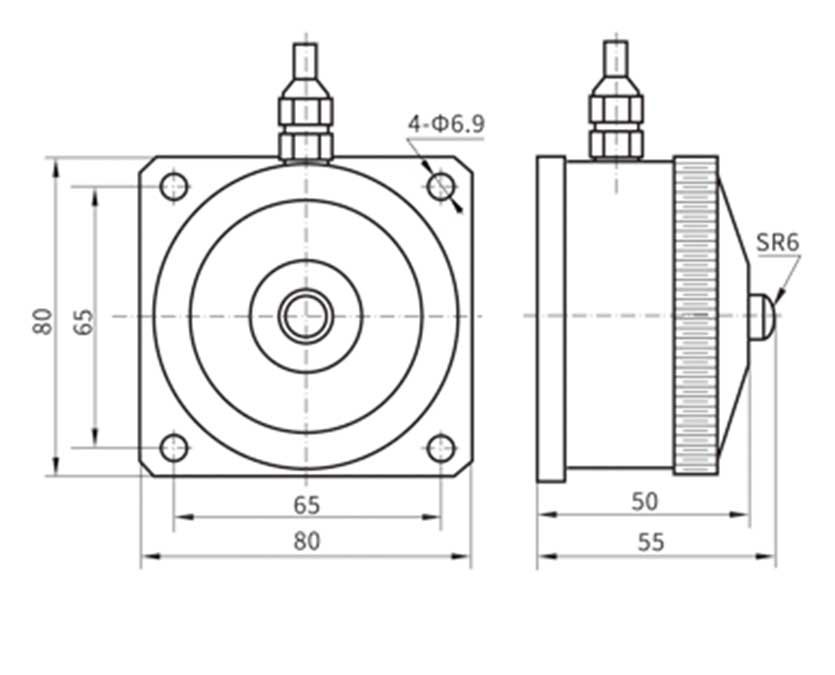

TJH-1 is a kind of load cell sensor for weight measurement. These classic products(TJH-1 weighing load cell) are mature and reliable and have obtained utility model patents. The unique T-type overload protection device has the strong anti-overload capability. It has a bottom plate with 4 mounting holes for easy installation. Optional integrated standard signal output, such as 4~20mA or 0~5V three-wire load cell amplifier. Suitable for belt scales, batching scales, etc.
Specifications of TJH-1 measurement of force using strain gauge load cell
|
Technical Parameter |
|
|
Rated Load |
30N~1.5 kN |
|
Comprehensive Precision |
0.05~0.1% FS |
|
Sensitivity |
2.0 mV/V |
|
Creep |
±0.05% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.05% FS/10℃ |
|
Temperature Effect On Output |
±0.05% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
380±10 Ω |
|
Output Resistance |
350± 3 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Load Cell Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White |
|
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel |
|
Amplifier Mode of Connection |
Power: Red |
|
Public Side: Blue |
|
|
Output: White |
|
Features of TJH-1 Weighing Load Cell
0.05% FS accuracy
Compression only load cell
Comes with indenter and mounting base plate
Unique T-type overload protection
Optional built-in transmitter
Eccentric load compensated
Utility model patents
