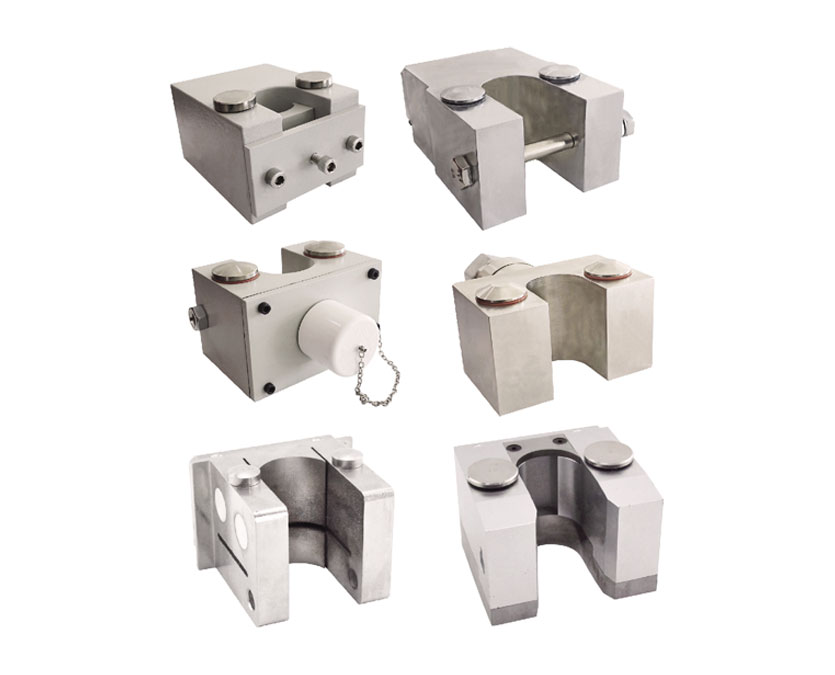

TJH-17 Oil Field Load Cell
Oil sender sensor is suitable for data acquisition of oil field wellheads. It has the characteristics of convenient installation, good sealing, high comprehensive precision, anti-corrosion, moisture-proof, dust-proof and good dynamic performance. It has been used in many oil fields such as Daqing, Shengli, North China, Xinjiang, Liaohe, Changqing, etc., and has been widely praised.
Specifications of JTH-17 Oil Field Load Cell
|
Technical Parameter |
|
|
Rated Load |
100~300 kN |
|
Comprehensive Precision |
0.3% FS |
|
Sensitivity |
1.0~1.5 mV/V |
|
Creep |
±0.05% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.05% FS/10℃ |
|
Temperature Effect On Output |
±0.05% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
700~800 Ω |
|
Output Resistance |
700± 3 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel |
|
Load Cell Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White |
|
