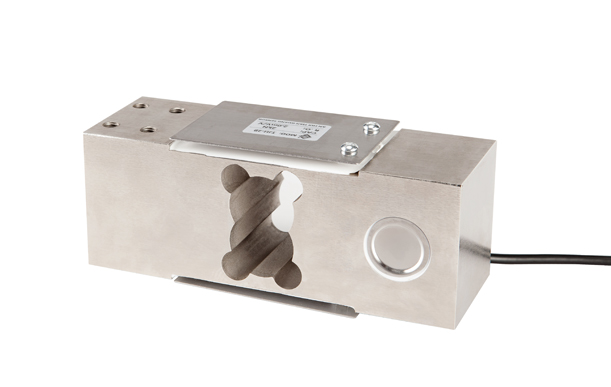

TJH-2B Parallel Beam Load Cell
The product is adjusted at the four corners to ensure that it outputs consistently at all points in the specified load plane. Suitable for packaging scales, platform scales, electronic belt scales, batching scales, etc.
Specifications of TJH-2B Parallel Beam Load Cell
Technical Parameter |
|
Rated Load |
1~10 kN |
Comprehensive Precision |
0.02~0.05% FS |
Sensitivity |
2.0 mV/V |
Creep |
±0.02% FS/30min |
Zero Output |
±1% FS |
Temperature Effect On Zero |
±0.02% FS/10℃ |
Temperature Effect On Output |
±0.02% FS/10℃ |
Operating Temperature Range |
-20~+65 ℃ |
Input Resistance |
380±10 Ω |
Output Resistance |
350± 3 Ω |
Insulation Resistance |
>5000 MΩ |
Safe Load Limit |
150% FS |
Bridge Voltage |
Reference 10V DC |
Material |
Alloy Steel or Stainless Steel |
Load Cell Mode Of Connection |
Input+: Red |
Input-: Black |
|
Output+: Green |
|
Output-: White |
As one of the most professional washer type load cell manufacturers, Tianguang Sensor provides washer load cell, load washer load cell, waterproof load cell, load cells for sale and etc. Contact us to know type of load cell or more.
