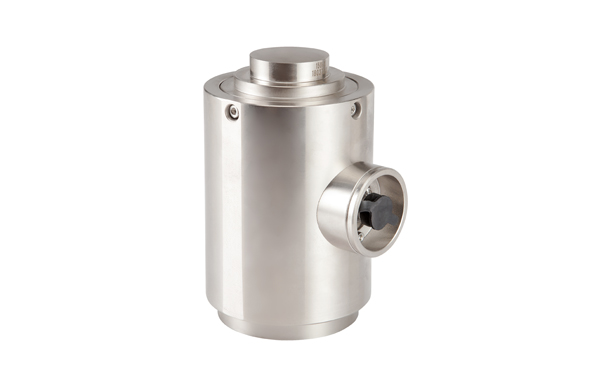

TJH-3 Column Type Load Cell
Wide range, strong anti-overload capability. Widely used in pharmaceutical and chemical, coal metallurgy, electronic truck scales, railway scales, storage scales, tanks and other large tonnage measuring equipment.
Specifications of TJH-3 Column Type Load Cell
|
Technical Parameter |
|
|
Rated Load |
150~3000 kN |
|
Comprehensive Precision |
0.05~0.1% FS |
|
Sensitivity |
2.0 mV/V |
|
Creep |
±0.05% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.03% FS/10℃ |
|
Temperature Effect On Output |
±0.03% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
380±10 Ω |
|
Output Resistance |
350± 3 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel |
|
Load Cell Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White |
|
Tianguang Sensor provides rocker column load cell, load cell for tank weighing system, bending beam load cell, load cells for sale and etc. Contact us to know more or buy load cell.
