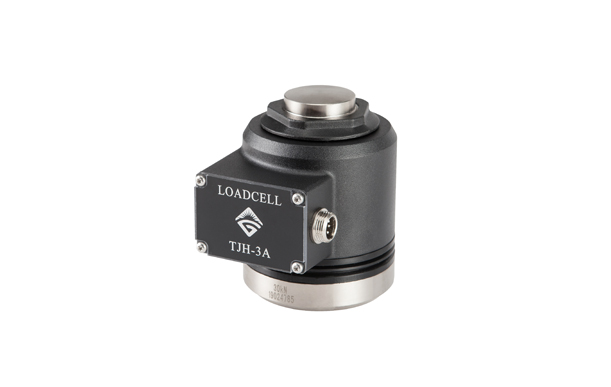

TJH-3A Column Type Load Cell
Small range TJH-3, Small size, easy to install. The comprehensive precision of the load cell is high.It can choose weighing module or built-in amplifier, which can be applied to a variety of weighing occasions.
Specifications of TJH-3A Single Column Load Cell
|
Technical Parameter |
|
|
Rated Load |
2~100 kN |
|
Comprehensive Precision |
0.05% FS |
|
Sensitivity |
2.0 mV/V |
|
Creep |
±0.05% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.05% FS/10℃ |
|
Temperature Effect On Output |
±0.05% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
380±10 Ω |
|
Output Resistance |
350± 3 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel |
|
Load Cell Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White |
|
We can offer different types of load cells for sale, if you have needs, please contact us.
