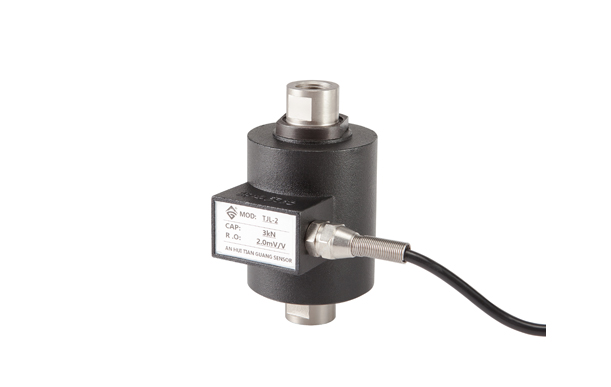

TJL-2 Tension Compression Load Cell
High precision, good sealing. Suitable for measuring and controlling the force value of batching scale, packaging scale and other equipment.
Specifications of TJL-2 Miniature Tension Load Cell
|
Technical Parameter |
|
|
Rated Load |
1.5~10 kN |
|
Comprehensive Precision |
0.05% FS |
|
Sensitivity |
2.0 mV/V |
|
Creep |
±0.05% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.05% FS/10℃ |
|
Temperature Effect On Output |
±0.05% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
680±15 Ω |
|
Output Resistance |
650± 5 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel |
|
Load Cell Sensor Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White. |
|
