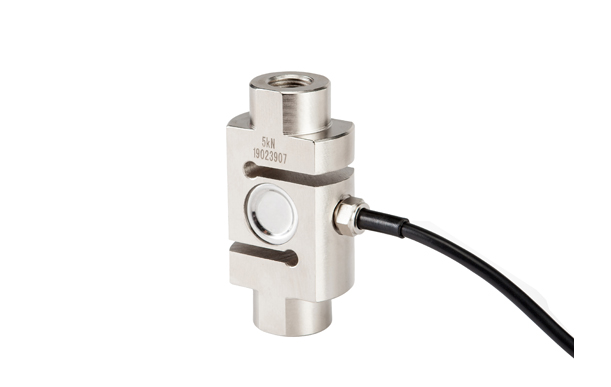

TJL-4 Column Type Tension Load Cell
With the characteristics of imple structure, high reliability and good interchangeability, the column type tension wireless load cell is suitable for various proportioning scales, hopper scales, hook scales, etc.
Specifications of TJL-4 Column Type Tension Load Cells
|
Technical Parameter |
|
|
Rated Load |
1~200 kN |
|
Comprehensive Precision |
0.05~0.1% FS |
|
Sensitivity |
2.0 mV/V |
|
Creep |
±0.05% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.05% FS/10℃ |
|
Temperature Effect On Output |
±0.05% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
380±10 Ω |
|
Output Resistance |
350± 3 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel or Stainless Steel |
|
Load Cell Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White. |
|
