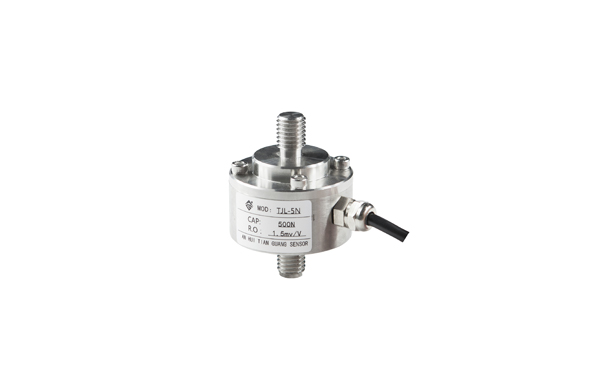

TJL-5N Stainless Steel Load Cell
Simple structure, high reliability and good interchangeability. Suitable for various proportioning scales, hopper scales, hook scales, etc.
Specifications of TJL-5N Stainless Steel Web Tension Load Cell
Technical Parameter |
|
Rated Load |
0.1~20 kN |
Comprehensive Precision |
0.3% FS |
Sensitivity |
1.0~2.0 mV/V |
Creep |
±0.1% FS/30min |
Zero Output |
±1% FS |
Temperature Effect On Zero |
±0.05% FS/10℃ |
Temperature Effect On Output |
±0.05% FS/10℃ |
Operating Temperature Range |
-20~+65 ℃ |
Input Resistance |
380±10 Ω |
Output Resistance |
350± 3 Ω |
Insulation Resistance |
>5000 MΩ |
Safe Load Limit |
150% FS |
Bridge Voltage |
Reference 10V DC |
Material |
Alloy Steel or Stainless Steel |
Load Cell Mode Of Connection |
Input+: Red |
Input-: Black |
|
Output+: Green |
|
Output-: White |
If you want to know more type of load cell, please visit our website.
