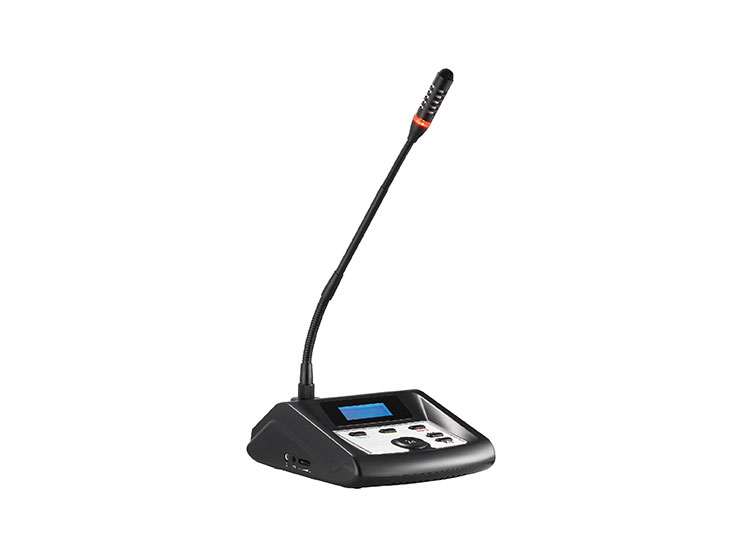

TL-4200 Desktop Digital Conference System
Functions of TL-4200 Desktop Digital Conference System
GONSIN TL-4200 digital conference equipment offers versatile conferencing solutions featuring microphone discussion, interactive voting, video tracking, digital recording and software control.
TL-4200 basic discussion unit allows the delegate to speak, request to speak and listen to speech, other units with extended function can support register attendance and cast a vote. Each unit comes with headphone jack and volume control for delegates to listen to the floor speaker and any interpreted language channel, and adjust volume level for comfortable listening. Built-in speaker automatically mutes when a microphone is turned on. 1 to 4 delegate microphones can be activated at the same time. The system also comes with voice-activated function, in this mode, the microphone will be activated as the users speak. The sensitivity of voice-activated is adjustable, which makes it more user-friendly for normal users and visually impaired people.
Main Features of TL-4200 Desktop Digital Conference System
Elegant streamline design
Exquisite manufacturing process
Voice-activated function
Support multiple chairman units and vice chairman units
Built-in loudspeaker
Support auto camera tracking function (SD and HD)
Highly resistant to mobile phone interference
Electret cardioid pickup pattern microphone, rich timbre
White-on-blue backlit LCD to display the unit status
Pluggable gooseneck microphone stem, red ring luminant to indicate active mic
Basic Functions of TL-4200 Desktop Digital Conference System
Microphone discussion: push to talk or request to talk. AUTO/FIFO/OPERATOR/VOX modes are available for microphone management
VOX sensitivity and mic time-out are adjustable
Unlimited chairman units and vice chairman units are allowed
System supports hot plugging
Six kinds of detachable gooseneck microphone stem
Attandence registration with software: pressing key or inserting card
Speak time control with software
VOX function: in vox mode, the unit will be activated as user speaks; VOX sensitivity can be adjust by the server ( high, middle, low); microphone time-out is adjustable (6-180 seconds), 1-4 delegate unit can be used except the chairman unit
Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view
4*1+1 video matrix is built in the Central Control Unit, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view
Dynamic LCD messages for voting, discussion, interpretation and attendance registration
Units come with recording output
The chairman unit has following functions besides functions above:
Chairman units can be activated at any time
Chairman unit can override/mute all the active delegate units
Based on functions of TL-4200, TL-VB4200 unit has functions below:
Voting: delegate can vote for Yes, No, Abstain. Vote counting and result display are enabled automatically by PC
-- Single-choice and multiple-choice voting
-- First keypress and final keypress voting
Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election'
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software.
LCD Dynamic display of the voting process( such as " registration please, registration done, voting please, voted, please return, request to speak, mic on", etc.)
Technical Parameters of TL-4200 Desktop Digital Conference System
Mounting type |
desktop |
Frequency response |
20Hz~20KHz |
Sensitivity |
-46dB±4dB |
THD |
(THD)<0.05%</span> |
SNR |
≥96dB |
Max SPL |
125 dB (THD<3%)</span> |
Dynamic range |
>85dB |
VOX Sensitivity |
High/Middle/Low(77dB/80dB/82dB) |
VOX auto mic time-out |
6-180 seconds |
Power |
24V |
Microphone stem length |
410mm(standard)(310mm/510mm optional) |
LCD |
size: 47mm×18mm |
blacklight: white letters on blue |
|
Built-in loudspeaker |
2W/8Ω |
Eeaphone jack |
Mono 3.5mm jack |
Weight |
0.8Kg |
Dimensions(W×D×H) |
145mm×173mm×57mm |
Working temperature |
0~45°C |
Storage temperature |
-20~50°C |
We can offer kinds of conference table microphone for sale, if you have needs to buy conference table mic , please leave us a message.
If you want to know more kinds of gonsin conference equipment, please visit our website.
