TOP quality Chinese heavy duty hydraulic pipe clamps to DIN 3015-2
Quantité : 1 Prix : 1,00 €

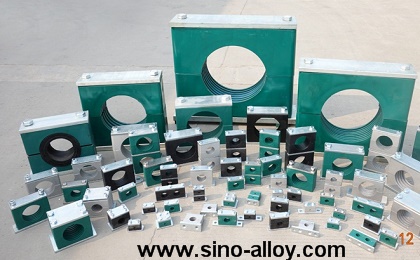

Heavy duty pipe clamps/ heavy series pipe clamps according to German standard DIN 3015 part 2:
Heavy duty pipe clamps are the heavy series of hydraulic pipe clamps/ hydraulic tube clamps. Younglee manufactures heavy duty pipe clamps with high quality material, modern technology and under strict quality control system.
1) Size range:
Our heavy duty pipe clamps are fit for tube / pipe size O.D. 6mm -508 mm
2) Structure
Heavy duty pipe clamps supplied in weld-plate and channel-mounting designs. Stacking pipe clamps available.
Weld-plate design assembly including: Cover plate, clamp body, welded base plate, bolts
Channel-mounting design assembly including: Cover plate, clamp body, bolts, rail nuts, Rail or channel.
3) Materials:
Younglee Metal Products Co., Ltd produces pipe clamps in a wide range of materials according to customers requirements.
Mounting metal hardware(accessories): Galvanized Carbon steel / stainless steel(304/316)
Clamp Body: Polypropylene(PP) / Polyamide(PA) / Aluminum(AL)
4) Detailed information:
l Heavy duty pipe clamps are available with weld plate mounting for all sizes and channel mounting with special "T" nuts for pipe sizes up to OD 70 mm (2 1/2")
l Rails /Channels are available in lengths of 1 meter and 2 meters and are economical for multiple mounting on single channel
l Both weld plate and channel mounting designs are available only with top plate in view of the heavy vibration and loading encountered where there are used
l Heavy duty pipe clamps with polypropylene bodies are available for pipe size up to O.D 508mm
l Stacking Heavy duty pipe clamps are also available in vertical mounting arrangement and horizontal multi-clamp arrangement either back to back or run
l Both Standard Duty and Heavy Duty pipe clamps are also available in other mounting forms for compact and efficient piping where the installation has multiple lines stacked vertically or horizontally. They may be used in horizontal back to back mounting where excessive loads and vibration are encountered
5) Application:
Heavy duty pipe clamps are used for installing and fastening hydraulic tubing and instrumentation tubing, and other kind of , hoses, cables for applications where heavy and high vibrations are encountered.
They are invariably used for trench layout of and in open-weather conditions, and in hydraulic systems in different areas such as the metallurgy, construction machinery, chemical industry, Marine, ship building, power station and so on.
