TP300 Cable Probe

TP300 cable probe system mainly used in various specifications of CNC grinding machines, CNC lathes and specially measuring devices. TP300 cable probe system includes a TP300 trigger probe unit, HPI-A16 (axial outlet) or HPI-R16 (radial outlet) probe shank containing the probe's interface and standard measuring software.

TP 300 cable probe system mainly used in various specifications of CNC grinding machines, CNC lathes and specially measuring devices. TP300 cable probe system includes a TP300 trigger probe unit, HPI-A16 (axial outlet) or HPI-R16 (radial outlet) probe shank containing the probe's interface and standard measuring software.

Parameter of CNC TP300 Cable Digitizing Touch Probe

TP300:

Measuring direction ±X,±Y,+Z

Arbitrary direction swinging angle X-Y±12°, Z +5 mm

Repeatability (2σ) ≤ 2 μm;

Trigger force in Z direction 1000(g)

Trigger force in X-Y direction 65-130(g)

Input voltage 24±10% VDC

Model of the standard stylus M4-P50-RB6-S36

Seal grade IP68

Application of CNC TP300 Cable Digitizing Touch Probe

Monitoring part machining process on gear wheel grinders and sharpeners

Using in wheel repair lathe machine to measure alloy wheel

Using with robot machine to set datum point

Technology of CNC TP300 Cable Digitizing Touch Probe

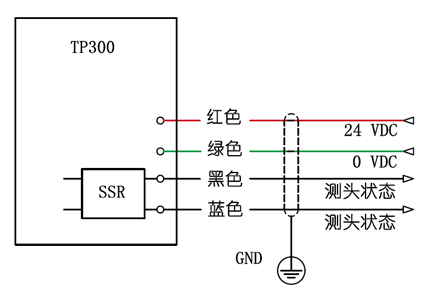

The signal interface of the probe is integrated inside the probe shank, and the trigger signal is transmitted by cable

By changing the power supply polarity at the probe interface, the logic state of the output signal can be reversed

The stylus connector of the probe is protected by double layers of rubber seal

TP300 size is small, Ideal for use in small workspacesAs a professional probe factory, Pioneer has high-quality pioneer probe for sale. Welcome to contact us if needed.
