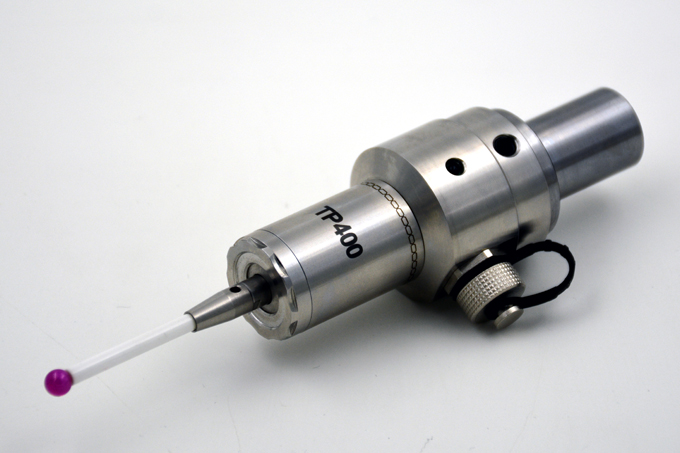

TP400 Cable Probe
TP400 cable probe system mainly used in various specifications of CNC grinding machines, CNC lathes, and especially measuring devices. TP400 CNC digitizing cable probe system includes a TP400 trigger probe unit, two four-core, oil-proof shielded cables,s and standard measuring software.
TP 400 cable probe system mainly used in various specifications of CNC grinding machines, CNC lathes, and especially measuring devices. TP400 CNC digitizing cable probe system includes a TP400 trigger probe unit, two four-core, oil-proof shielded cables,s and standard measuring software.
Parameter of TP400 CNC Digitizing Cable Probe
TP400: |
|
Measuring direction |
±X,±Y,+Z |
Arbitrary direction swinging angle |
X-Y±12°, Z +5 mm |
Repeatability (2σ) |
≤ 2 μm; |
Trigger force in Z direction |
1000(g) |
Trigger force in X-Y direction |
65-130(g) |
Input voltage |
24±10% VDC |
Model of the standard stylus |
M4-P50-RB6-S36 |
Seal grade |
IP68 |
Application of TP400 CNC Digitizing Cable Probe
TP400 probe is widely used in CNC machine to do wheel refurbishment and repair
TP400 probe used in a milling machine to set work-piece coordinate
TP400 probe used in some special machine to set machine zero points and inspection
Technology of TP400 CNC Digitizing Cable Probe
The probe has a signal interface circuit inside, eliminate the need to install and set up the interface module.
TP400 logic state of the output signal can be reversed normally closed or normally open by changing the power supply's polarity.
The probe uses two pieces of cable to transmit signals, one of the spiral cables has aviation plugs at both ends, which can be quickly installed and discounted, providing convenience for the application of the probe in different types of equipment.
Pioneer is a professional probe manufacturer, we provide pioneer probe, cnc height setter, length tool setter, cnc tool setter and etc. Want to know more? Please contact us.
