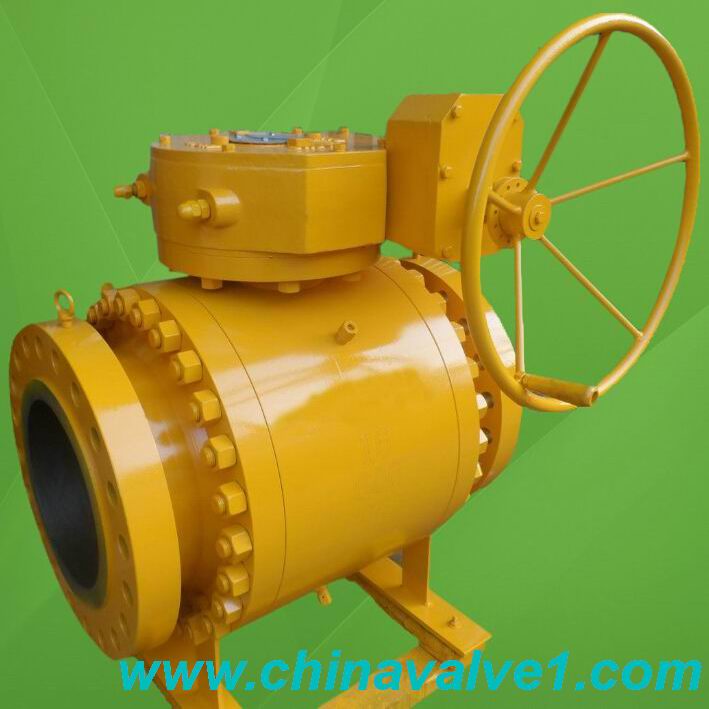

Trunnion mounted ball valve
Quantité : 500 Prix : 99,00 €
Trunnion mounted Ball Valve series. It has fire-proof and antistatic design .No-direction limit for installing ,wide usage, reasonable price, easy operation
Characteristics of API Trunnion Mounted Ball Valve
1. Design and manufacture of ptoduct according to American state standard ANSI B16.34, American petroleum institute standard API608 API6D.
2. Liquid resistance smallest of all type of valve.
3. Open quickly, only turn on 90 degree may finilsh open and close.
4. Seat material use teflon or R-teflon, low friction, seal reliable open and close lightly.
5. Movement of ball on the middle of valve seat has wipe function so may suit medium of suspending granule.
6. Stem use back seal and hyperbatic structre which may prevent medium to striking stem on the condition of pressure.
7. According to the need of consumer, may design for anti-static electricity, fireproop and use a locker to prevent wrong operator.
8. Body of ball can be floated or fixed accordance with the of strength of opening and closing. Seat of fixed ball valve floatablerealize seal purpose depend on piston effect of medium pressure so to lighten the strength of open and close.
Trunnion Mounted Ball Valve Applying Standard (Fire -Proof、electicity Protect)
Type |
Desing And Manufacture |
Face to face /End to end |
Flange Dimension |
Pressure and Temperature |
lnspection and test |
Split flange ball valve |
BS5351 API6D |
ASME B16.10 |
ASME B16.5 |
ASME B16.34 |
API598 |
Trunnion Mounted Ball Valve Pressure test
Nominal Pressure |
Shell Test |
Water Seal Test |
Air Seal Test |
|||
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
|
150 |
3.1 |
450 |
2.2 |
315 |
0.5-0.7 |
60-100 |
300 |
7.8 |
1125 |
5.6 |
815 |
||
600 |
15.3 |
2225 |
11.2 |
1630 |
||
900 |
23.1 |
3350 |
16.8 |
2440 |
||
1500 |
38.4 |
5575 |
28.1 |
4080 |
Trunnion Mounted Ball Valve Main part material
Body |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF3 |
ASTM A351 CF8M |
ASTM A351 CF3M |
Ball stem |
F6a F304 F316 |
F304 F316 |
F304L |
F316 |
F316L |
Sealing face |
Reinforced PTFE(-29ℿ180ℿ |
Personne à contacter : Cathy Fang, +86 577 57781015
