TSP(Thermally Stable Polycrystalline Diamond)
Quantité : 8000kgs Prix : USD0.025 - USD1.05
TSP(Thermally Stable Polycrystalline Diamond)
TSP diamond is made of diamond powders and a small amount of binder sintered under high temperature and high pressure. It has high wear resistance, strong impact toughness, good thermally stability, and dense structure, and is widely used in the manufacture of petroleum, geological drill bits, and Machining tools and gem processing.
Key Features and Application of Thermally Stable Polycrystalline Diamond
Thermally Stable Polycrystalline Diamond (TSP) is also called polycrystalline diamond solid pieces. TSP consists of diamond powder & bonder and is made in an ultra-high pressure and high temperature. TSP features good thermally stability up to 1200 °C, due to its thermally expansion binder the same as diamond and its chemical inertness.
Application: drilling bits and gauging.

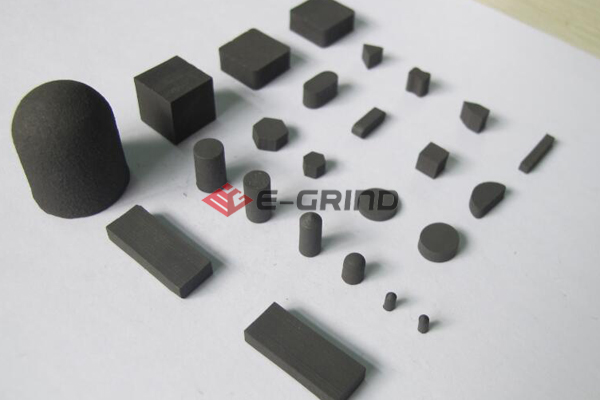

Available Sizes of Thermally Stable Polycrystalline Diamond
E-Grind supplies TSP in various shapes and hardness.
Diameter x length x angle |
|
Ф1x1.2x120° |
□1.0x1.0x1.0 |
Ф1.2x3.5x120° |
□1.5x1.5x1.5 |
Ф1.1x3.5x180° |
□1.5x1.5x3 |
Ф1.5x3.5x180° |
□1.5x1.5x4/5 |
Ф1.5x4x180° |
□2x2x2 |
Ф1.8x4x180° |
□2.5x2.5x2.5 |
Ф2x4x120°/180° |
□2.5x2.5x5 |
Ф2.7x4x120° |
□2.6x2.5x1.5 |
Ф3x3x180° |
□3x3x3 |
Ф3x2.6x180° |
□3.5x3.5x3.5 |
Ф3x5x120°/ 180° |
□3x3x4 |
Ф3x6x120° |
□3x3x6 |
Ф3.3x6.3x180° |
□3x3x5 |
Ф4x4x180° |
□4x4x2.5 |
Ф4x5x90°/180° |
□4x4x4 |
Ф4x6x120° |
□4x4x6 |
Ф5x4x180° |
□4x4x8 |
Ф5x5x120°/180° |
□5x5x5 |
Ф5.3x2.1x180° |
□5x5x8 |
Ф6x3x180° |
□5.3x3.2x1.5 |
Ф6x4x180° |
□16x12x6 |
Ф6x6x120°/180° |
△4x4x4x2.6 |
Ф6x8x120°/180° |
△5x5x5x3 |
Ф6x12x120°/180° |
△6x6x6x3.5 |
Ф6.3x3.3x180° |
△6x6x6x4 |
Ф6.3xФ5.2x3.3x180° |
△6x6x6x4.5 |
Ф8x2.6x180° |
△6x6x6x5 |
Ф10x2.2x180° |
△6.2x6.2x4.3 |
Ф13x2.5x180° |
△7x7x7x2 |
Ф13x3x180° |
3x3x10 R1.5 |
Ф13x3.5x180° |
Hexaganal 8x3.5 |
Ф18.8x3.2x180° |
|
If you want to know more about what is abrasive powder, please visit our website.
