TTC400A Cable Tool Setter Unit
Quantité : 50000 piec Prix : USD2000
Harbin Pioneer M&E Technical Development Co, Ltd was founded by Mr. Baichun Sun in 1995. After several years of development, the probe factory gradually focused its main business on developing CNC machine probing, the production, and sales of CNC touch probe & setter system.
TTC400A cable tool setter unit is a product specially developed by our company for replacing some vulnerable tool setting units that is part of the swing-arm for setting the cutting tool in the CNC lathes. It is suitable for various specifications of CNC lathe, turning machine center and CNC milling -turning center.
TTC400A lathe tool setter unit is a product specially developed by our company for replacing some vulnerable tool setting units that is part of the swing-arm for setting the cutting tool in the CNC lathes. It is suitable for various specifications of CNC lathe, turning machine center and CNC milling -turning center.
Parameter of TTC400A Cable Tool Setter Unit
|
TTC400A: |
|
|
Measuring direction |
±X, ±Z,±5 mm |
|
Repeatability (2σ) |
≤ 2 μm; |
|
Diameter of the four ceramic touching pillar |
5.0 mm |
|
Hardness of the touch face |
HM8.5 |
|
Input voltage |
24±10% VDC |
|
Output load current |
50 mA |
|
Seal grade |
IP68 |
Application of TTC400A Cable Tool Setter Unit
- TTC400A used with a high-precision motorized tool setting arm, which can realize in-sequence tool setting and tool breakage detection without operator intervention.
- For tool measuring and broken tool detection on 2-axis and 3-axis CNC lathes.
- Replacement of some vulnerable tool setting units.
Technical Characteristics of TTC400A Cable Tool Setter Unit

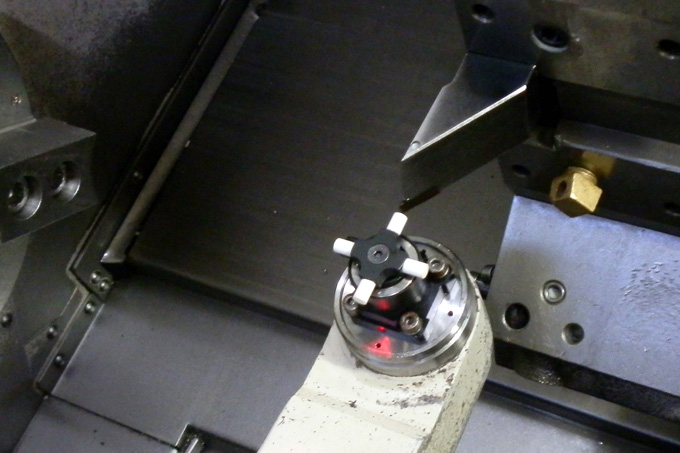

- As shown in the picture, the installing structure and size of the tool setter unit are exactly the same as the replacement;
- Tool setter unit transmits tool setting signal through cable;
- It is ensured during manufacturing that the position relationship between four pillars of the tool setter unit and mounting base;
- One LED indicator light is used to display the tool setter's working state.
- Signal model and LED instruction: high electric level output with normal signal state, LED normally on; When any one pillar is triggered, the signal output point is suspended and the LED is off;
