Two-axis CNC Knurling Machine

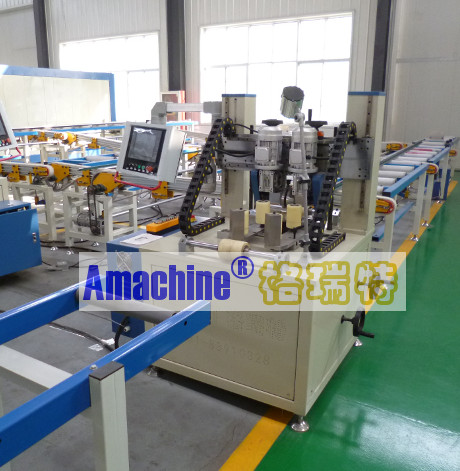

AM-SK1621 Two-axis CNC Knurling Machine
Applications:
This machine is only for knurling. This CNC Profile Knurling machine is used to increase the binding force of aluminum profile and barrier in grooves where the thermal barrier stri p goes through. The knurled grooves increase the friction force between thermal barrier strip and al uminum profiles, so that the bridge-cut-off profile could present a great performance in heat insula tion, water-proof effect, etc.
Features:
1, Advanced two-axis CNC control system is adopted. High precision ball screws, Taiwan HIWIN linear rails, Schneider electrical appliance, and ABB inverter are used.
2, Two knurling wheels are CNC-controlled for vertical movement. Handwheels are installed for manual adjustment of vertical position.
3, Equipped with HMI LCD touching display screen.The software developed by ourse lves makes it possible for various aluminum profile data to be stored and recalled at any time, so t hat it is convenient to process different types of profiles.
Technical data:
|
Model |
AM-SK1621 |
|
Power supply |
380V/50Hz |
|
Total power |
1.86Kw |
|
Knurling wheel diameter |
80mm |
|
Knurling wheel regulating range |
Horizontal(width): 160 mm |
|
Vertical(height): 210 mm |
|
|
Knurling speed |
0-110m/min |
|
Max knurled profile section |
160x210mm(WxH) |
|
Knurling wheel regulating range |
6-160mm(width) |
|
Overall dimension |
1300x1000x1550mm(LxWxH) |
|
Weight |
800Kg |
Personne à contacter : Frank L, 0086 18560119196
