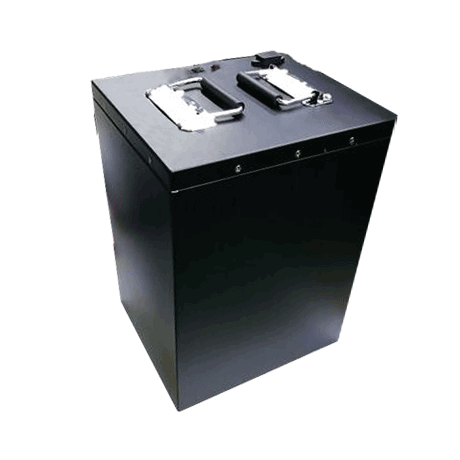

Two Wheeler Battery
2 Wheeler Battery 48V/31Ah, 72V/20Ah/30Ah/40Ah/50Ah/60Ah
Two-Wheeler Batteries are mainly used in 2-wheel electric vehicles, 3-wheel electric vehicles, wheelchairs and other products with a Strong Mechanical Design for vibration and impaction in operation.
For the product application field requirement of high-quality lithium batteries, Two Wheeler Batteries voltage include 24V/36V/48V range and 8~250Ah capacity, and customer can Series or Parallel the Battery Packs to increase operation voltage or capacity base on their application.
And the Two-Wheeler Batteries support I2C/SMBUS/CANBUS/RS484/RS232 communication and Bluetooth extended function, wheelchairs or another system that can display Battery pack information like voltage, temperature, remain mileage, remain run time by communication.
Features of Lithium ion Battery for Two Wheeler 48V/31Ah, 72V/20Ah/30Ah/40Ah/50Ah/60Ah
High-quality lithium cell: Fully automatic production line; Good consistency of cell performance; Long cycle life: more than 1000 cycles
Safest structure design: UL94V-0 materials; IP65~IP67; Physical layout to avoid thermal runaway; Screw locked internal wire connection
Flexible BMS Hardware: Available for 4S~16S system; Full protection for charging/discharging/temperature/Short circuit; Secondary security protection system
Application of Two-Wheeler Battery 48V/31Ah, 72V/20Ah/30Ah/40Ah/50Ah/60Ah
Two-Wheeler Batteries, made by the lithium ion battery company, are mainly used in 2-wheel electric vehicles, 3-wheel electric vehicles, wheelchairs and other products with Strong Mechanical Designs for vibration and impaction in operation. For the product application field requirement.
PHYSICAL SPECIFICATIONS OF TWO WHEELER BATTERY 48V/31Ah, 72V/20Ah/30Ah/40Ah/50Ah/60Ah
Model |
Voltage (V) |
Capacity(Ah) |
Dimension (mm) |
Weight (kgs) |
Case |
Color |
|||
Minimum |
Typical |
Length |
Width |
Height |
|||||
ZP17014 |
48 |
30.8 |
31.9 |
535 |
160 |
98 |
9.8 |
ABS/Aluminium |
Black/Silver |
ZP18031 |
72 |
19.2 |
20 |
220 |
220 |
180 |
12.3 |
Iron |
Black |
ZP18032 |
72 |
28.8 |
30 |
300 |
220 |
180 |
17.2 |
Iron |
Black |
ZP18033 |
72 |
38.4 |
40 |
240 |
200 |
340 |
22.6 |
Iron |
Black |
ZP18034 |
72 |
48 |
50 |
270 |
230 |
367 |
27.8 |
Iron |
Black |
ZP18035 |
72 |
57.6 |
60 |
270 |
230 |
367 |
31.7 |
Iron |
Black |
ELECTRICAL SPECIFICATIONS OF TWO WHEELER BATTERY 48V/31Ah, 72V/20Ah/30Ah/40Ah/50Ah/60Ah
Items |
ZP17014 |
ZP18031 |
ZP18032 |
ZP18033 |
ZP18034 |
ZP18035 |
|
Charge |
Charge voltage |
54.6±0.1V |
84.0±1.0V |
84.0±1.0V |
84.0±1.0V |
84.0±1.0V |
84.0±1.0V |
Charge current |
10A |
4A |
6A |
85A |
10A |
12A |
|
Max charge current |
15A |
10A |
15A |
20A |
25A |
30A |
|
Discharge |
Continuously discharge current |
50A |
50A |
60A |
80A |
100A |
100A |
Peak discharge current |
75A (5S) |
60A 1min |
80A 1mins |
100A 1mins |
120A 1mins |
120A 1mins |
|
Temperature |
Charge temperature |
0℃~+45℃ |
0℃~+45℃ |
0℃~+45℃ |
0℃~+45℃ |
0℃~+45℃ |
0℃~+45℃ |
Discharge temperature |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
|
Storage temperature |
-10℃~40℃ |
-20℃~45℃ |
-20℃~45℃ |
-20℃~45℃ |
-20℃~45℃ |
-20℃~45℃ |
|
Communication |
CanBus |
/ |
|||||
SOC Gauge |
LED Indicator |
/ |
|||||
BMS Protection |
Overcharge/over discharge, over/under temperature, under-voltage, short circuit |
If you want to know more kinds of li ion battery packs, please visit our website.
