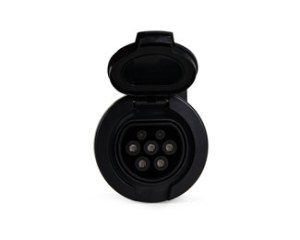

Type2 AC EV charging Socket
Jayuan AC Type2 charging socket is used for the home charging station as well as directly mounted wall socket for EV charging. Slow charging option is available and it's suitable to connect to the Type 2 connector and vehicle which adapts the type2 charging system.
Features of Jayuan Type2 AC EV Charging Socket
IP55 Working Grade.
Fits Standard IEC62196-2 2016.
Hela Locking Device Matched.
Optional Installing of Prevention Cap(Left, Right, Front).
Oil Proof, Pressure Proof, Impact Resistant, flame retardant, Wear-resisting.
1 or 2 PTC(PT1000) Thermistor, NTC Matching or Switch Control of Temperature.
Specifications of Type2 AC EV Charging Socket
|
Electrical |
Environment |
Materials |
Mechanical |
||||
|
Insulation Resistance: |
>1000MΩ (DC500V) |
Operating Temperature: |
-30℃~50℃ |
Shell (Thermoplastic): |
UL94-VO Flame Retardent |
Life: |
no-load plug>10000times |
|
Pins Temperature Rise: |
<50K</span> |
Waterproof IP Grade: |
IP55 |
Contact Pin: |
Copper Alloy, Silver/Nickel Plated |
External Force: |
1meters Drop and 2tons vehicle run over pressure affordable. |
|
Withstand Voltage: |
2500V |
/ |
/ |
/ |
/ |
Insertion Force: |
<100N</span> |
|
Contact Impedance: |
0.5mΩMax |
/ |
/ |
/ |
/ |
Sealing Gasket: |
(Silicon) Rubber |
|
Rated Current: |
16A/32A/40A |
/ |
/ |
/ |
/ |
/ |
/ |
|
Rated Voltage: |
250V/440V |
/ |
/ |
/ |
/ |
/ |
/ |
Jayuan is a solar products supplier, we provide custom wire and cable, cheap solar products and etc. Want to know more? Please contact us.
