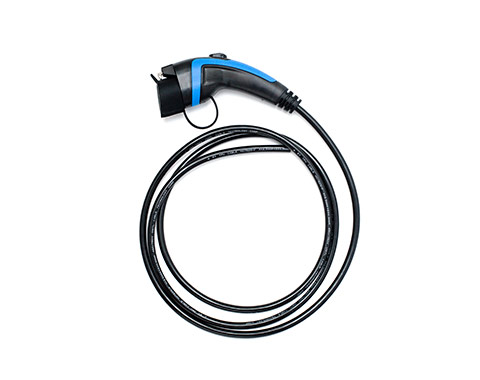

Type2 EV Charging Cable
The cable conforms to the IEC Standard (EU) of EV Charging, which suits electric vehicles manufactured in European Countries. For better convenience, it has a simple design that no button on the top of the connector. The other option is Cable Spiral Type, it saves more space when stocking, nice solution for charging.
Features of Jayuan Type 2 Charging Cable
Matching SAE J1772-2012,IEC 621962-2016.
Ergonomic Design.
Convenient Connector.
Advanced Craft shows a Nice Appearance.
Longer Lifespan and Better Bending thanks to XLPO & TPU Material.
Customize Double Color Coating.
Specifications of Type2 EV Charging Cable
|
Electrical |
Environment |
Materials |
Mechanical |
||||
|
Insulation Resistance: |
>1000MΩ (DC500V) |
Operating Temperature: |
-30℃~50℃ |
Shell (Thermoplastic): |
UL94-VO Flame Retardent |
Life: |
no-load plug>10000times |
|
Pins Temperature Rise: |
<50K</span> |
Waterproof IP Grade: |
IP55 |
Contact Tube: |
Copper Alloy, Silver Plated |
External Force: |
1meters Drop and 2tons vehicle run over pressure affordable. |
|
Withstand Voltage: |
2500V |
/ |
/ |
/ |
/ |
Insertion Force: |
<100N</span> |
|
Contact Impedance: |
0.5mΩMax |
/ |
/ |
/ |
/ |
/ |
/ |
As one of the ev charger manufacturers, we provide custom wire and cable, ev type 1, solar panel solutions and etc. Want to know more? Please contact us.
