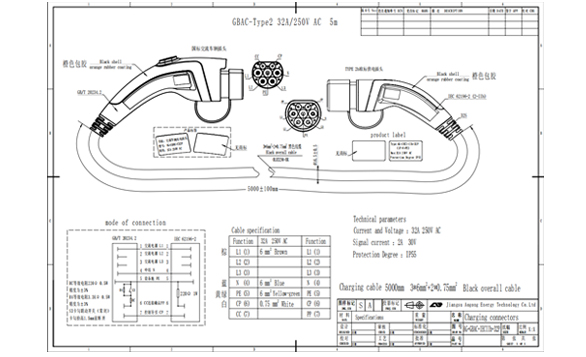

TYPE2-GBT Charging Mode3 Cable

Mechanical properties

Mechanical life: no-load plug>10000times

Impact of external force: can afford 1m drop and 2t vehicle run over pressure.

Electrical Performance

The rated current: 16A、32A

The rated voltage: 250V

Insulation resistance: >1000MΩ(DC500V)

Pins temperature rise: <50K</span>

Withstand voltage: 2000V

Contact impedance: 0.5mΩMax

Applied Materials

Shell Material: thermoplastics, flame retardant grade UL94-V0

Pin: Copper alloy, silver

Environmental performance

Operating temperature: -30C-+50C

TYPE2-GBT Charging Mode3 Cable Features

Conform to the provisions and requirements of GB/T 20234.2-2015 & 62196-2 IEC 2010 SHEET 2-lle.

Product assembly meet GB/T 20234.2-2011 Charging Mode3 connection method B2.

Using riveting pressure process with none screw, have a beautiful appearance.Hand-neld design conform to the ergonomic principle,plug conveniently.

Nice appearance, hand design to prevent accidental direct contact with hands.

Excellent protection performance, protection grade achieved IP55 of plug(working condition)High security.
