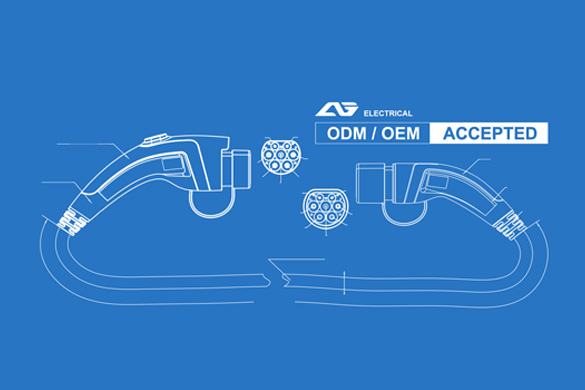

TYPE2-GBT Charging Mode3 Cable

AG ELECTRICAL is one of the top electric vehicle charging equipment manufacturers, our GBT EV Charging products are sold to many countries all over the world. Our GBT EV Charging Components can meet the needs of different customers in different areas to the maximum extent.

Mechanical properties

Mechanical life: no-load plug>10000times

Impact of external force: can afford 1m drop and 2t vehicle run over pressure.

Electrical Performance

108. The rated current: 16A、32A
108. The rated voltage: 250V
108. Insulation resistance: >1000MΩ(DC500V)
108. Pins temperature rise: <50K</span>
108. Withstand voltage: 2000V
108. Contact impedance: 0.5mΩMax

Applied Materials

Shell Material: thermoplastics, flame retardant grade UL94-V0

Pin: Copper alloy, silver

Environmental performance

Operating temperature: -30C-+50C

TYPE2-GBT Charging Mode3 Cable Features

108. Conform to the provisions and requirements of GB/T 20234.2-2015 & 62196-2 IEC 2010 SHEET 2-lle.
108. Product assembly meet GB/T 20234.2-2011 Charging Mode3 connection method B2.
108. Using riveting pressure process with none screw, have a beautiful appearance. Hand-neld design conform to the ergonomic principle,plug conveniently.
108. Nice appearance, hand design to prevent accidental direct contact with hands.
108. Excellent protection performance, protection grade achieved IP55 of plug(working condition)High security.

TYPE 2 to 3 Pin Charging Cable Parameter
