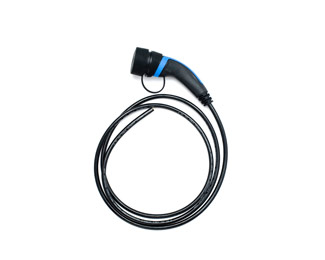

Type2-Type1 EV Charging Cable
The cable conforms to IEC & SAE Standard (EU & USA) of EV Charging, suits Electric Vehicles manufactured in European Countries and America. The Type 1 end (with sheath) connect to the EV while The Type 2 end connects to the Charging Station. The other option is Cable Spiral Type, it saves more space when stocking, nice solution for charging.
Features of Jayuan type 2 to type 1 charging cable
Matching IEC 62196-2 2010 and SAE J1772 2010.
Ergonomic Design.
Convenient Connector.
Advanced Craft shows a Nice Appearance.
Longer Lifespan and Better Bending thanks to XLPO & TPU Material.
IP65 for Plug.
Specifications of Type2-Type1 EV Charging Cable
|
Electrical |
Environment |
Materials |
Mechanical |
||||
|
Insulation Resistance: |
>1000MΩ (DC500V) |
Operating Temperature: |
-30℃~50℃ |
Shell (Thermoplastic): |
UL94-VO Flame Retardent |
Life: |
no-load plug>10000times |
|
Pins Temperature Rise: |
<50K</span> |
Waterproof IP Grade: |
IP66/IP55 |
Pin: |
Copper Alloy, Silver Plated |
External Force: |
1meters Drop and 2tons vehicle run over pressure affordable. |
|
Withstand Voltage: |
2500V |
/ |
/ |
/ |
/ |
Insertion Force: |
<100N</span> |
|
Contact Impedance: |
0.5mΩMax |
/ |
/ |
/ |
/ |
/ |
/ |
As one of the electric car charger manufacturers, we provide custom wire and cable, type 2 portable charger, polycrystalline solar panels for sale and etc. Want to know more? Please contact us.
