Type2-Type2 EV Charging Cable

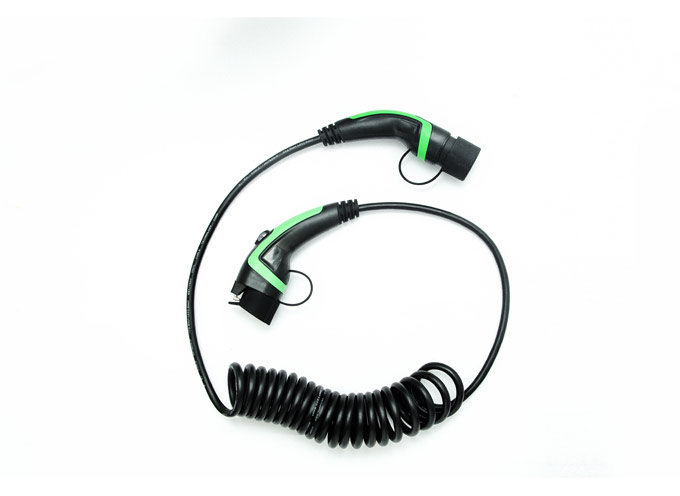

The cable conforms to the IEC Standard (EU) of EV Charging, which suits Electric Vehicles manufactured in European Countries. One end with sheath connects to the EV while The other end connects to the Charging Station. The other option is Cable Spiral Type, it saves more space when stocking, nice solution for charging.
Features of Jayuan Type 2 to Type 2 Charging Cable
Matching IEC 62196-2 2010 and SAE J1772 2010.
Ergonomic Design.
Convenient Connector.
Advanced Craft shows a Nice Appearance.
Longer Lifespan and Better Bending thanks to XLPO & TPU Material.
IP55 for Plug.
Specifications of Type 2 to Type 2 EV Charging Cable
|
Electrical |
Environment |
Materials |
Mechanical |
||||
|
Insulation Resistance: |
>1000MΩ (DC500V) |
Operating Temperature: |
-30℃~50℃ |
Shell (Thermoplastic): |
UL94-V |
Life: |
no-load plug>10000times |
|
Flame Retardent |
|||||||
|
Pins Temperature Rise: |
<50K</span> |
Waterproof IP Grade: |
IP66/IP55 |
Pin: |
Copper Alloy, Silver Plated |
External Force: |
1meters Drop and 2tons vehicle run over pressure affordable. |
|
Withstand Voltage: |
2500V |
/ |
/ |
/ |
/ |
Insertion Force: |
<100N</span> |
|
Contact Impedance: |
0.5mΩMax |
/ |
/ |
/ |
/ |
/ |
/ |
We can also offer kinds of type 2 to type 1 cable for sale, if you have needs, please contact us.JAYUAN is driven by the goal to provide our clients with the best solutions for EV Charging systems, EV charging as well as provide customized product options to them.
