U5501 3G MINI PCIe 3G module Wireless data transfer module

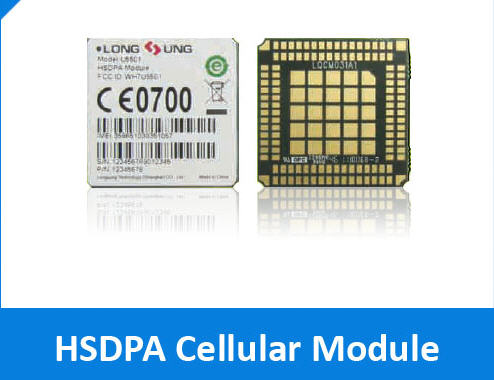

HSDPA Cellular Module

Except used as a standard wireless modem through AT command, U5501 offers Audio, SMS, MMS, Phonebook.

General features
* HSDPA downlink up to 3.6Mbps
* WCDMA(UMTS) uplink up to 384kbps
* Dual-Band UMTS
900/2100MHz
* EDGE (E-GPRS) multi-slot class 12
* GPRS multi-slot class 12
* UMTS/HSDPA 3GPP release 99
* GSM 3GPP release 99
* Output power:
- Class 4 (2 W) for GSM900
- Class 3 (0.25 W) for UMTS
- Class E2 (0.5 W) for EDGE900
- Class E2 (0.4 W) for EDGE1800
- Class 1 (1 W) for GSM1800
* Control via AT commands
(Hayes 3GPP TS 27.007 and 27.005)
* SIM Application Toolkit (release 99)
* Supply voltage range: 3.3 ... 4.2V
* Power consumption:
- Sleep mode <5mA</span>
- Power down 50 μA
- Average Supply Current < 700mA
* Temperature range
- Normal Operation: -20°C to +65°C
- Restricted Operation: -30°C to +75°C
- Storage: -40°C to +85°C
* Dimensions: 30.0x30.0x2.5mm

Specification for voice :
* Triple-rate codec for HR, FR and EFR
* GSM & 3GPP: Adaptive multi-rate AMR
* DTMF supported


Support HSDPA data :
* HSDPA: max. 3.6 Mbps (DL),
* HSDPA Category 6 supported
* Compressed mode according to 3GPP
TS25.212

Specifications for UMTS data :
* UMTS: Max. 384 kbps (DL),
Max. 384 kbps (UL)

Specifications for EDGE data :
* EDGE class 12: Max. 237 kbps (DL),
Max. 118 kbps (UL)
* Mobile station class B
* Coding scheme MCS 1-9

Specifications for GPRS data :
* GPRS class 12: Max. 85.6 kbps (DL),
Max. 42.8 kbps (UL)
* Mobile station class B
* Full PBCCH support
* Coding schemes CS 1-4

Specifications for CSD data :
* GSM data rate 14.4 kbps, V.110
* UMTS data rate 57.6 kbps, V.120
* RLP (Non-transparent mode)

Specifications for SMS
* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode
* MMS

Special features
* Improved power-saving modes
* NDIS/USB driver for Microsoft
Windows2000/XP/Vista32/64,Windows7
* RIL/NDIS/USB driver for devices based on
Windows Mobile5.0 and its Successor
* USB driver for Linux2.4.x, Linux2.6.x
* Customer IMEI as variant
* Firmware update via USB
* PC_SUITE Auto-installation

Interfaces
* 116-pin LGA connector
- Power supply
- Audio: 2 x analog
- USB 2.0 high speed
- USIM/SIM card interface 3 V, 1.8 V
- UART
- PCM
- GPIOs

Approvals

* RoHS
