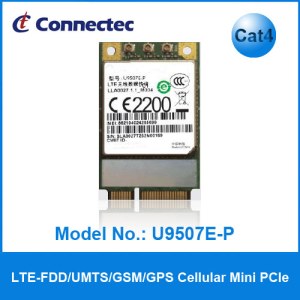

U9507E-P 4G TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS PCIE module
LTE-FDD/UMTS/GSM/GPS Cellular Module
U9507E-P is a wireless module which is designed for the global market. It is a consumptive product; It can be designed in many kinds of applications which can work on LTE-FDD/UMTS/GSM/GPS/
GLONASS(Optional) network.
On LTE-FDD network, U9507E-P enables connect to the Internet at DL data speed up to 150Mbps and
UL data speed up to 50Mbps. In the area where LTE service are not available, U9507E-P still enables
reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507E-P provides SMS, MMS, Phonebook functions as well as high speed access, and also audio
function. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet,
Electric-book, MID, Vehicle equipment, etc.
General features:
* EDGE multi-slot class 12
* GPRS multi-slot class 12
* Compliant to GSM phase 2/2+
* Output power:
- Class 3 (0.25W) for
LTE/UMTS
- Class 4 (2 W) for GSM 900
- Class 1 (1 W) for GSM 1800
* Control via AT commands
(3GPP TS27.005/3GPP TS27.007 )
* Supply voltage range 3.3V- 4.2V
* Low Power consumption
- Sleep mode: 5mA
- Power down: 50 μA
* Dimensions: 51.0×30.0×4.6mm
* Operation Temperature : -40°C to +85°C
Specifications for SMS:
* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode
Additional features:
* VoLTE
* Phone book
* PCM and analog Audio
* DTMF
Specifications for data:
* Support Release 9 Category 4
* LTE-FDD up to 150 Mbps DL,50 Mbps UL
* DC-HSPA+ up to 42Mbps DL,5.76Mbps UL
* EDGE up to 237Kbps DL,118Kbps UL
* GPRS class 10: 85.6kbps DL,85.6kbps UL
* CSD up to 14.4 kbps
* Transparent mode
* PBCCH support
* PPP-stack
* Coding schemes CS 1,2,3,4
* FOTA
* TCP/IP
* NDIS
Interfaces:
RF connector
PCI Express® Mini Card Interface
- Power supply
- USB 2.0 high speed
- UICC/SIM/UIM card interface 3 V, 1.8 V
- UART
- Analog Audio
- PCM
Antenna connector
Approvals:
* RoHS
* CE
* GCF
