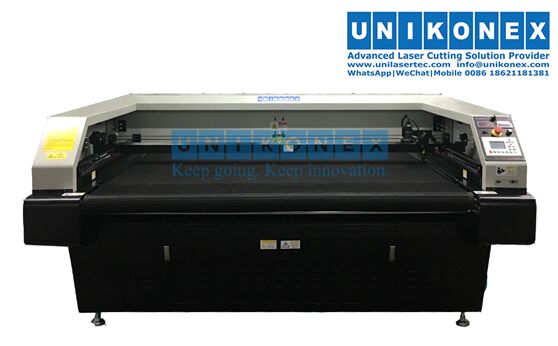

UL-VC Series CCD Vision Laser Cutting Machine

General Details

UL-VC series high-precision vision laser cutting machine is a model with CCD camera positioning and analysis system, with specialist software could positions the laser beam according to fiducial marks and automatically recognize the contour, then accurately position for cutting without any additional hand-work . Plus advance function for compensation of distortion such as shrinkage, stretching and twists in the material, as result you will get faster processing speed together with high process reliability and short machine setup times.
The Max. processing area up to 3200x8000mm, really well-prepared for all applications in the fields of laser cutting for large size materials, equipped with the DSP digital control, rigid mechanics and software specialized on the cutting of textile and fabrics.
It's suitable for continues production with automation workflow, high performance, productivity, quality and reliability add up to a lower cost of owner-ship , that's means cost saving for your business.

Features

1. Laser cutting machine design with UniSmartCut controller which is based on advanced DSP technology for improving the performance, dedicated speed controller software design ensures fast and stable moving, plus automatic laser compensation technology.
2. Suitable for end-user who has a high requirements on the precision of cutting, it is widely used for most of popular application such as garment , leather, toy, computer embroidery, handcraft, advertisement, decoration, building upholster, package materials, digital printing, paper products, etc.
3. CCD Camera positioning system, captures marks via CCD camera and automatically recognize the printed design contour or curves, automatic camera detection enables printed materials to be cut out precisely along the printed outline. Even copying tolerances in the printed format can be compensated by software control.
4. Fast continues curve cutting is possible, due to the powerful data processing capability of the high speed DSP technology and precision mechanical system. During high-speed operation, cutting either straight lines or curves without distortion.
5. Protection system: enclosure protection, emergency stop switch, leakage protection.
6. Give the user best usablility&reliability, higher acceleration and speed, plus high precision and accuracy. As example for general sport wear, daily production can be 500-800 sets.

Applicable Materials

Textiles&Fabrics, Acrylic, Filmes&Foils, Foam, Paper, Packaging box, Leather, and digital printing materials, etc.
Above includes materials commonly processed by laser, for questions on other materials please contact an applications specialist.​​
