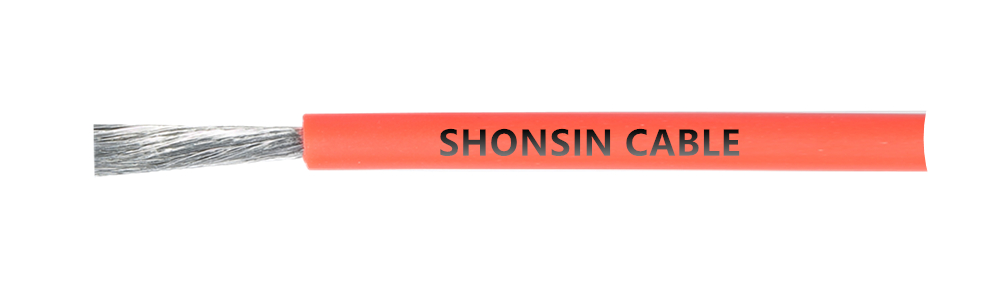

UL1007 PVC UL Wire
The most common hook up wire is UL 1007. It is a single conductor that comes with extruded PVC insulation which is a thermoplastic material.
Features of UL1007 PVC UL Wire:
Rated Temperature: 80℃
Rated Voltage: 300Vac
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 32 AWG - 16 AWG, Solid or Stranded.
Insulation: Extruded PVC, 15 mils (0.38mm) minimum average thickness, 13 mils (0.33mm) minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring of appliances. Tags may indicate the following: 600 V Peak - For Electronic Use Only.
Specifications of UL1007 PVC UL Wire:
|
Cable Type |
Conductor |
Insulator |
|||||
|
Size |
Construction |
Cross Section |
Diameter |
Thickness |
Overall Diameter |
||
|
AWG |
No. |
Copper(Φmm) |
(mm²) |
(mm) |
(mm) |
(mm) |
|
|
UL1007 |
32 |
7 |
0.08 |
0.04 |
0.24 |
0.38 |
1 |
|
30 |
7 |
0.10 |
0.05 |
0.31 |
0.40 |
1.1 |
|
|
28 |
7 |
0.127 |
0.09 |
0.39 |
0.41 |
1.2 |
|
|
26 |
7 |
0.16 |
0.14 |
0.49 |
0.41 |
1.3 |
|
|
24 |
11 |
0.16 |
0.22 |
0.61 |
0.39 |
1.4 |
|
|
22 |
17 |
0.16 |
0.34 |
0.76 |
0.42 |
1.6 |
|
|
20 |
26 |
0.16 |
0.52 |
0.94 |
0.43 |
1.8 |
|
|
18 |
42 |
0.16 |
0.84 |
1.20 |
0.45 |
2.1 |
|
|
16 |
66 |
0.16 |
1.33 |
1.50 |
0.45 |
2.4 |
|
Shonsin Electronics Co., Ltd is a professional custom wire and cable manufacturers, we provide cable custom, such as pvc cable, tpe cable, xlpvc cable, silver cable, battery cables and etc. Want to know more? Please contact us.
Personne à contacter : liu Deven, 0769 82883226
