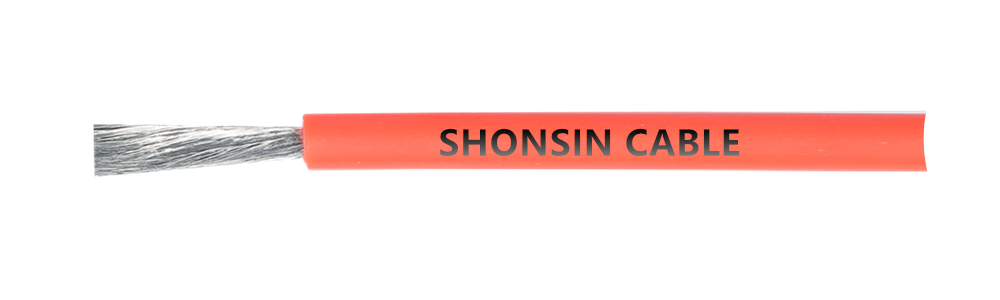

UL1569 PVC UL Wire
UL 1569 wire is a single conductor that comes with extruded PVC insulation which is a thermoplastic material.
Features of UL1569 PVC UL Wire:
Rated Temperature: 80℃, 90℃ or 105℃
Rated Voltage: 300 Vac
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 30 AWG - 2 AWG, Solid or Stranded.
Conductor size |
Minimum average thickness |
Minimum thickness at any point |
30-10 AWG |
15 mils |
13 mils |
9-2 AWG |
30 mils |
27 mils |
Insulation: Extruded PVC
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring of appliances or electronic equipment were not subjected to movement or mechanical damage. The tag may also indicate the following, "600 Volts Peak for Electronic Use Only."
Specifications of UL1569 PVC UL Wire:
Cable Type |
Conductor |
Insulator |
|||||
Size |
Construction |
Cross Section |
Diameter |
Thickness |
Overall Diameter |
||
AWG |
No. |
Copper(Φmm) |
(mm²) |
(mm) |
(mm) |
(mm) |
|
UL1569 |
30 |
7 |
0.10 |
0.05 |
0.31 |
0.40 |
1.1 |
28 |
7 |
0.127 |
0.09 |
0.39 |
0.41 |
1.2 |
|
26 |
7 |
0.16 |
0.14 |
0.49 |
0.41 |
1.3 |
|
24 |
11 |
0.16 |
0.22 |
0.61 |
0.39 |
1.4 |
|
22 |
17 |
0.16 |
0.34 |
0.76 |
0.42 |
1.6 |
|
20 |
26 |
0.16 |
0.52 |
0.94 |
0.43 |
1.8 |
|
18 |
42 |
0.16 |
0.84 |
1.20 |
0.45 |
2.1 |
|
16 |
66 |
0.16 |
1.33 |
1.50 |
0.45 |
2.4 |
Shonsin Electronics Co., Ltd is a professional custom custom cable manufacturers, we provide custom wire, such as silicone wire, tinsel wire, speaker wire, hook up wire, power wire and etc. Want to know more? Please contact us.
