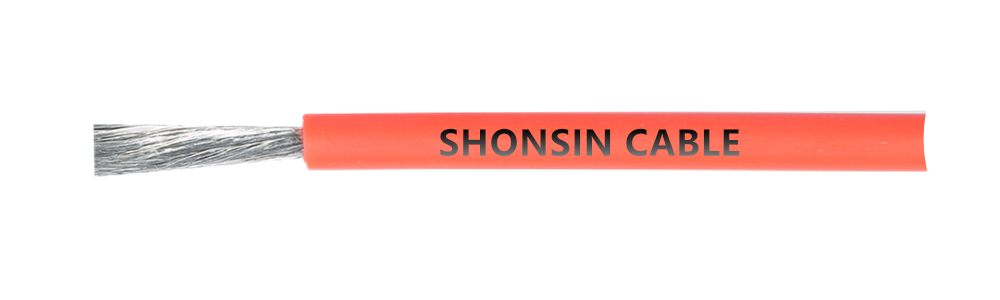

UL1803 PVC UL CABLE
UL 1803 high voltage wire is a single conductor that comes with extruded PVC insulation which is a thermoplastic material.
Features of UL1803 PVC UL Cable:
Rated Temperature: 80℃
Rated Voltage: 2000 Vac or 2000 Vdc
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 26 AWG - 18 AWG, stranded.
Insulation: Extruded PVC, 45 mils (1.143mm) minimum average thickness, 40 mils (0.1mm) minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Test probe lead for electrical and electronic measuring and test equipment.
Specifications of UL1803 PVC UL Cable:
|
Cable Type |
Conductor |
Insulator |
|||||
|
Size |
Construction |
Cross Section |
Diameter |
Thickness |
Overall Diameter |
||
|
AWG |
No. |
Copper(Φmm) |
(mm²) |
(mm) |
(mm) |
(mm) |
|
|
UL1803 |
26 |
7 |
0.16 |
0.14 |
0.49 |
1.16 |
2.8 |
|
24 |
11 |
0.16 |
0.22 |
0.61 |
1.144 |
2.9 |
|
|
22 |
17 |
0.16 |
0.34 |
0.76 |
1.17 |
3.1 |
|
|
20 |
26 |
0.16 |
0.52 |
0.94 |
1.18 |
3.3 |
|
|
18 |
42 |
0.16 |
0.84 |
1.20 |
1.15 |
3.5 |
|
Shonsin Electronics Co., Ltd is a professional custom wire and cable manufacturers, we provide custom wire, such as silicone wire, tinsel wire, speaker wire, hook up wire, power wire and etc. Want to know more? Please contact us.
