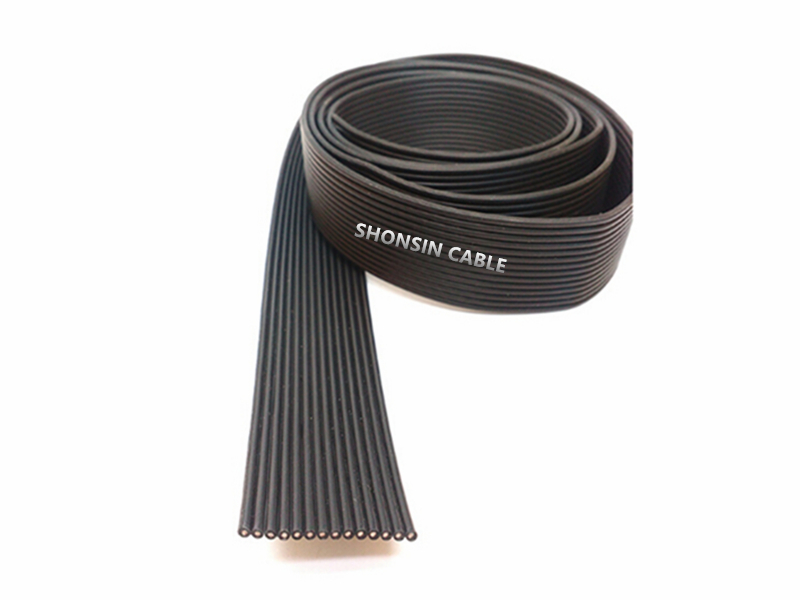

UL20080 PVC UL WIRE
Features of UL20080 PVC UL Wire:
Rated Temperature: 60℃，80℃，90℃ or 105℃
Rated Voltage: 30 Vac
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 40 AWG minimum.
Insulation: Extruded PVC, 2 mils min average, 100 mils max. May be solid or cellular with or without irradiation.
Assembly: Two to 150 conductors.
Shielding: Optional
Jacket: Optional, extruded PVC, 5 mils minimum thickness at any point, 80 mils maximum thickness.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal Wiring of Class 2 Circuits in Audio, Video, and Electronic Equipment.
Shonsin Electronics Co., Ltd is a professional custom wire and cable manufacturers, we provide custom wire, such as silicone wire, tinsel wire, speaker wire, hook up wire, power wire and etc. Want to know more? Please contact us.
