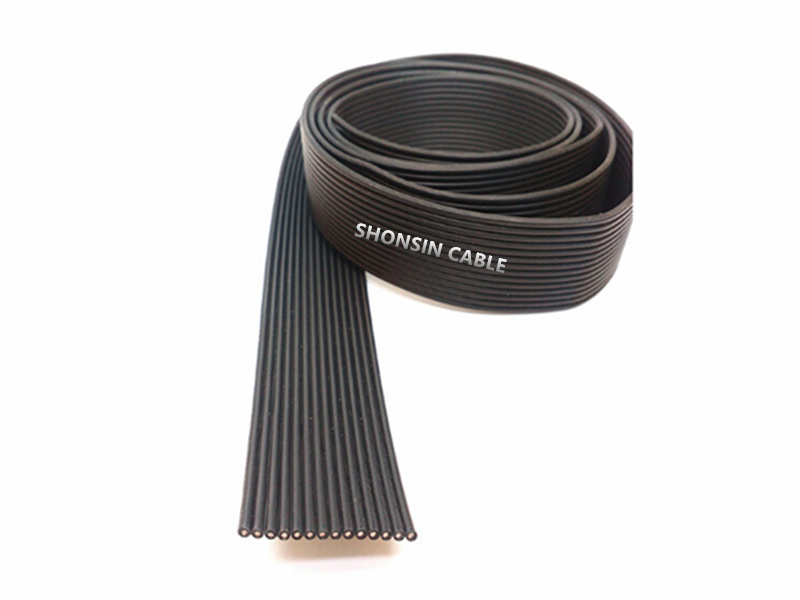

UL2468 PVC UL WIRE
Prix : 0.07-100
UL2468 PVC UL WIRE
Features of UL2468 Wire:
Rated Temperature: 80℃
Rated Voltage: 300 Vac
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 2-150, Nos. 32-16 AWG. Tinned or bare, solid or stranded copper, conductors laid parallel and in one plane. Same or mixed AWG.
Insulation: Extruded PVC, 15 mils minimum average thickness, 13 mils minimum thickness at any point.
Assembly: Two to one hundred and fifty conductors laid parallel and in one plane. May use same or mixed AWG size. Minimum average and minimum at any point of insulation thickness after ripping shall be 15 mils and 13 mils, respectively. This forms a flat cable with a single row of conductors having a 1/2 in. maximum width web between insulated conductors.
Shielding: Optional
Jacket: Optional, extruded PVC, 5 mils minimum thickness at any point, 80 mils maximum thickness.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring.
Shonsin Electronics Co., Ltd is a professional custom cable makers, we provide flat speaker cable, XLPE Cable and etc. Want to know moew? Please contact us.
Personne à contacter : liu Deven, 0769 82883226
