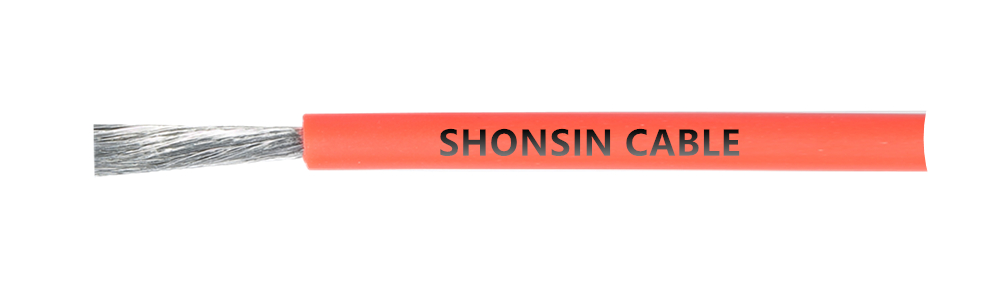

UL3512 SILICONE CABLE
UL 3512 silicone wire is a single conductor that comes with extruded Silicone jacket which is a thermoset material.
Features of UL3512 Silicone Cable:
Rated Temperature: 200℃
Rated Voltage: 600 Vac
Fire Resistance: Horizontal flame ( CSA FT2 )
Conductor: 0.3 - 250 sq mm, solid or stranded. If tinned copper strands are used, they shall be 0.0152 in diameter or larger.
Separator: Optional
Insulation: Extruded SR
|
Conductor size |
Minimum average thickness |
Minimum thickness at any point |
|
0.3-4.0 sq mm |
30 mils |
27 mils |
|
4.1-9.0 sq mm |
45 mils |
40 mils |
|
9.1-35.0 sq mm |
60 mils |
54 mils |
|
35.1-100.0 sq mm |
80 mils |
76 mils |
|
100.1-250.0 sq mm |
95 mils |
85 mils |
|
May be applied in two layers with an intermediate glass braid (optional). |
|
|
Standard: Appliance Wiring Material UL 758.
Resistant to acids, alkalis, chemicals.
Use: Internal wiring of appliances was totally enclosed.
Specifications of UL3512 Silicone Cable:
|
Cable Type |
Conductor |
Insulator |
|||||
|
Size |
Construction |
Cross Section |
Diameter |
Thickness |
Overall Diameter |
||
|
AWG |
No. |
Copper(Φmm) |
(mm²) |
(mm) |
(mm) |
(mm) |
|
|
UL3512 |
28 |
7 |
0.127 |
0.09 |
0.39 |
0.81 |
2.0 |
|
26 |
7 |
0.16 |
0.14 |
0.49 |
0.81 |
2.1 |
|
|
24 |
11 |
0.16 |
0.22 |
0.61 |
0.79 |
2.2 |
|
|
22 |
17 |
0.16 |
0.34 |
0.76 |
0.77 |
2.3 |
|
|
20 |
26 |
0.16 |
0.52 |
0.94 |
0.78 |
2.5 |
|
|
18 |
42 |
0.16 |
0.84 |
1.20 |
0.80 |
2.8 |
|
|
16 |
26 |
0.25 |
1.28 |
1.47 |
0.81 |
3.1 |
|
|
14 |
41 |
0.25 |
2.01 |
1.85 |
0.83 |
3.5 |
|
|
12 |
65 |
0.25 |
3.19 |
2.33 |
0.84 |
4.0 |
|
|
10 |
105 |
0.25 |
5.15 |
2.96 |
1.17 |
5.3 |
|
Shonsin Electronics Co., Ltd is a professional custom cable manufacturers, we provide 10 awg silicone wire, custom wire, bulk hook up wire, silver cable and etc. Want to know more? Contact us now.
