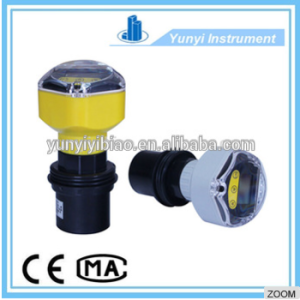

Ultrasonic digital level meter with high accuracy\best price
1. Strong, stable sensor suitable for harsh industrial applications2. Anti interference is strong , can set upper and lower alarm, and online output regulation
3. With built-in temperature sensor, can achieve real-time automatic temperature compensation.
4. Blind area can also be set manually, can shield the disturbance signal.
5. 4-20Ma current output.
Technical Parameter of ultrasonic digital level sensor :
|
Range |
0-1, 3, 5, 7, 10, 20, max is 50m |
Accuracy |
0.25-0.5% |
|
Voltage |
24VDC |
Resolution |
1mm |
|
Frequency |
12kHz to 70kHz |
Temp |
-20 to 60 DegC |
|
Output |
4-20mA |
Blind area |
0.25m-0.8m |
|
Protection |
IP67 |
Emission angle |
6 DegC to12 DegC |
|
Installation size |
Φ58mm/G2 thread |
Case material |
ABS or of Tetrafluoroethylene |
|
Sensor material |
ABS Engineering plastics |
Keyboard |
Three soft touch keys |
