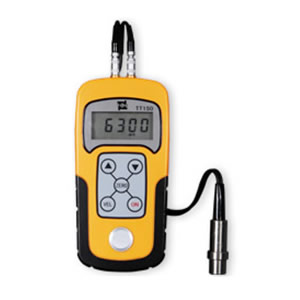

Ultrasonic thickness gauge TT150
Quantité : 100 Prix : USD375/pc
Features
Portable size and easy operation
Suitable for any metallic and non-metallic materials ultrasonic can go through
Self-compensating of nonlinearity function is supplied for correction of pickup nonlineasity
Optional 2.5MHz，5MHz and 7MHz transducer are available
Large LCD screen display and auto shut down
Low battery indication
Low frequency transducer is selectable for testing the
Technical Specification
| Model | TT150 |
| Measuring range | 0.8~225mm |
| Display resolution | 0.1mm |
| Sound speed | 1000~9999m/s |
| Workpiece temperature | -10~60℃ |
| Display | 4 digital LCD |
| Measuring accuracy | |
| Probe | Ø6mm(optional) Ø10mm(Standard) Ø126mm(optional) |
| Calibration plate | 4.0mm(Steel) |
| Power | AA batteries 1.5V |
| Working time | 250hours |
| Dimensions(mm) | 149×72×32 |
| Weight | 200g(with battery) |
Standard delivery
Main unit
5MHz transducer
Integrated steel calibration plate 4.0mm
Batteries AA1.5V
Couplant
TIME certificate
Warranty card
Instruction manual
Optional Accessary
2.5MHz transducer(3~300mm)
7MHz transducer(0.75~60mm)
