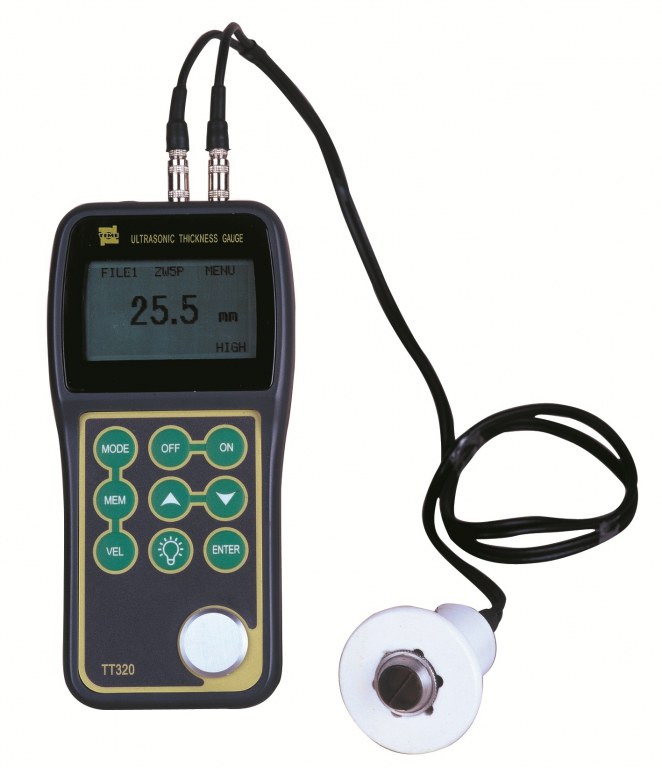

Ultrasonic thickness gauge TT320
Quantité : 100 Prix : USD560/pc
Features
Advanced handheld ultrasonic thickness gauge
Suitable for most metallic and non-metallic materials ultrasonic can go through
Auto-calibration of zero point, correction of system error
Display current thickness or minimum thickness (menu selectable)
Upper-lower limits setting and sound alarm
Memory of 500 stored values
Two point calibration for high accuracy
Display resolution 0.1mm/0.01mm selectable
Display in mm or inch
Large LCD display with adjustable backlight
Low battery indicator
TT320: high-temperature model with range up to 300℃
Technical Specification
| Model | TT320 |
| Measuring range |
1.2mm-225.0mm (steel) 5.0mm-80.0mm (steel high-temp) |
| Measuring accuracy | ±1% H +0.1mm (H means the thickness of tested piece) |
| Lower limits of steel | φ20mm x 3.0mm |
| Display resolution | 0. 1mmor 0.01inch |
| Data output | ---- |
| Sound velocity | 1000m/s~9999m/s |
| Power supply | 2pcs AA batteries (2pcs) 1.5V |
| Battery life | 100 hours without backlight |
| Sound speed | 1000m/s~9999m/s |
| Unit scales | mm/inch |
| Dimensions | 152mm×74mm×35mm |
| Weight | 370g |
| Surface temperature | -10℃~ +300℃ |
| Dimensions | 152mm×74mm×35mm |
Standard delivery
Main unit
Transducer 5PΦ10
Transducer ZW5P for TT320
Leather jacket
Couplant
Batteries AA 1.5V
Screwdriver
Instruction manual
TIME certificate
Warranty card
Optional Accessary
Printer TA230
Optional transducers
Personne à contacter : Boris Zhao, 8610 62982299 3252
Bonne affaire : acheter au vendeur
