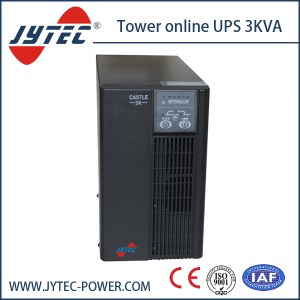

Uninterruptible power supply

Model

C1K

C1KS

C2K

C2KS

C3K

C3KS

Rated power

1000VA/800W

2000VA/1600W

3000VA/2400W

AC Input

Input system

Single phrase & earth ground

Range voltage

210/220/230Vac

Frequency

50/60Hz

Voltage range

115~300VAC±5@half load; 176-296VAC±5@full load

Frequency range

45~55Hz±0.5Hz or 55~65Hz±0.5Hz auto sense

Power factor

0.99

Voltage range of bypass

65VAC×(1±5%)～280VAC×(1±5%)

Battery Input

Type

Lead-Acid maintenance-free

Voltage range of battery

36VDC（24V/48Voptiona）

72VDC（48V/96VOptional）

96VDC

（48V/72VOptional）

Bat Number

3(2/4 optional)

6(4 /8 optional)

8(4/6 optional)

Inside batteries

12V7AH

-

12V7AH

-

12V7AH

-

Backup Time

Standard ups: Half loaded≥10minutes,Full loaded ≥5minutes
Long backup ups: depend on the external batteries

Charging current

1A

7A

1A

7A

1A

7A

Battery charged time

Standard ups: 5 hrs to 90% battery capacity

Long backups ups; depend on the capacity of external batteries

AC Output

Output system

Single phrase & earth ground

Output voltage

210/220/230Vac±2%

Output frequency

50±5Hz(line normal, according to line) 50Hz±1%(line abnormal)

Dynamic voltage transient range

<5%</p>

Dynamic transient restore

< 60ms

Waveform

True sine wave

Power factor

0.8

Overload capability

105～125%≥ 60s,126～150%≥30s The recovery point is 90%

Current peak coefficient

3: 1

Transfer time

0ms (AC to DC)

< 4ms(AC to Bypass)

Efficiency

85%

88%

THD

<2% full load(linear load)</p>

Panel display

LCD and LED

I/P Voltage, I/P& Frequency,Battery voltage,UPS status, load, temperature,O/P Voltage,Frequency, B/P Voltage,Frequency

Interface

Communications

RS232,Intelligent Slot (Web power card, or As400 Card Optional),Dry contacts optional

Power Outlets

No. and types

2 SOCKETS

4 SOCKETS

3 SOCKETS and 1 terminal

Function

Cold start

DC Power on

Automatic Charge

Automatic Charge when UPS is off

Automatic Restart

Automatic Restart if main power coming after battery mode shutdown

Frequency

50HZ/60HZ Auto Adjustable

Alarm

AC/DC input under abnormal ,overload condition and inverter problems

Protection

AC input or output above or below the range of voltage Overload ,overtemperature and short circuit protection

Environment

Temperature

-5 to 45 Degree

Noise level

≤55dB

Humidity

20% to 90%

Physical

Weight (KGs)

11.5

5.5

22

10

27

11

Shipping Wt.

12.5

6.6

24.5

12.5

29.5

13.5

Net dimensions (L*W*Hmm)

345*145*230

420*190*335

Gross dimensions (L*W*Hmm)

430*240*340

550*350*490
