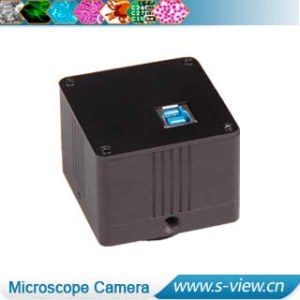

USB3.0 CMOS 5.0MP Microscope digital eyepiece Camera
5.0MP CMOS Digital Microscope Camera
The CMOS Digital Microscope Camera has a advanced software to help you finish various work, the adantage compare to other's:
- Fit to C-mount photograph tube or 23.2mm,30mm,30.5mm ocular
- CS/C-mount thread on camera body or reduction lens
- Capture video or images
- Support Windows XP/Vista/7/8
- Fully video parameter control and real-time processing of video, include contrast, saturation, gamma, clarity, automatic white balance (AWB),automatic exposure,flip horizontal, flip vertical, grayscale, emboss, sharpen,..etc
- Support real-time and Static image measurement (line, angle, circle, rectangle, Irregular polygon, manual accounting)
- You can use your own software or other software like Amcap to capture image or video on computer
- In order to increase the field of view, we design 0.45X relay lens, it fits to all size chip, and includes 4 pieces optical glass, present a better image quality than the common lens in market.
Application
- Pathology
- Education
- Industrial microscopy
- Live cell imaging
- Histology
- Cytology
- Semiconductor inspection
- Metrology
Specification
|
Sensor type |
Color CMOS |
|
|
Imaging sensor |
size |
1/2" |
|
Pixel size |
2.2μm×2.2μm |
|
|
Effective pixels |
2592x1944 |
|
|
Max resolution |
2592x1944 |
|
|
Sensitivity |
1.76V/lux-sec 550nm |
|
|
Dynamic Range |
70dB |
|
|
Exposure Controls |
Automatic/Manual |
|
|
Gain Control |
Automatic/Manual |
|
|
White Balance |
One shot automatic control |
|
|
Image Frame Rate |
14.7fps @ 2592x1944; 24fps @ 2048×1536; 35fps @ 1600×1200; 130pfs @ 640x480. |
|
|
Control interface |
USB 3.0 |
|
|
Lens Mount |
Standard C/CS-mount |
|
|
Control Software Operating System |
Windows XP, Vista, Win7, Win8(32 bit and 64 bit) |
|
|
Power |
USB 3.0 supported |
|
|
Operating Temp |
0 to 50 °C |
|
