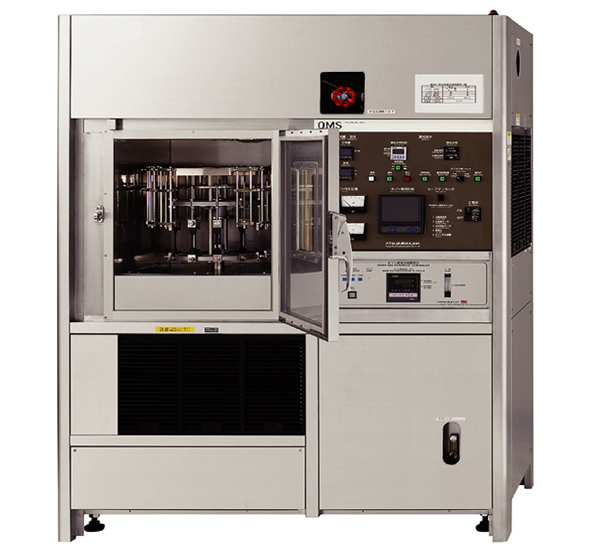

UV Carbon Arc weather Meter
Introduction:
Weatherproof test: This test is conducted to find out the impacts on some items and parts in a natural condition by such factors as sunbeam, ozone, rain, snow, temperature and humidity. It will also find out the resistance of the aforesaid items to the aging effects imposed on them by the elements. The changes of properties of the items under test such as deformation, discoloration, rate of , gloss, peeling, hardness and softness maybe found out easily in a short time. With the result of the test, the quality requirement may be improved. This test device may be used in many fields such as aviation, coating industry, automobile industry, textile industry, dyestuff industry, plastic industry and construction companies.
Feature:
1. Glass carbon dust suction device.
2. The voltage automatically detect the secondary.
3. Servo current adjustment device.
4. Odor automatic discharge device.
5. Spray humidification devices and ultrasound assisted humidification.
6. Specimen condensation promoting way, can improve the reproducibility of the test piece 10 times.
7. High life carbide.
8. Borosilicate glass windows and light simulation.
| MODLE ITEM |
TMJ-9705 | ||
| LIGHTING SOURCE | ENCLOSED CARBON ARC | ||
| INSIDE DIMENSION | 1000x1000x900(WxDxH) mm | ||
| OUTSIDE DIMENSION | 1300x2000x1300(WxDxH) mm | ||
| WEIGHT | 400KG | ||
| TESTING TIME | 24Hr/48Hr* | ||
| TEST VOLTAGE | 120V to 145V (135V) 135V±2% | ||
| TEST CURRENT | 15A to 17A (16A) 16A±2% | ||
| BLACK PANEL TEMPERATURE | CONSTANTLY 60oC or 83±3oC AUTOMATICALLY | ||
| SPECIMEN DRUM DIA. | 800mm | ||
| DRUM ROTATION SPEED | 1RPM | ||
| TEST SPECIMEN | No. | 60 PCS (2 STAGE) | |
| SIZE | 150 x70mm(WxD) | ||
| TEMPERATURE RANGE | RT+10oC ~85oC | ||
| HUMIDITY RANGE | DRY at 40oC, 40% to 85% RH DRY at 80oC, 30% to 50% RH |
||
| CARBON TYPE | UPPER | 13Фx305mm( 1 UNIT ) | 23Фx106mm( 1 UNIT ) 48H |
| LOWER | 13Фx100mm( 2 UNIT ) | 18Фx105mm( 1 UNIT ) 48H | |
| POWER SOURCE | 220V/380V SINGLE PHASE 11KVA |
